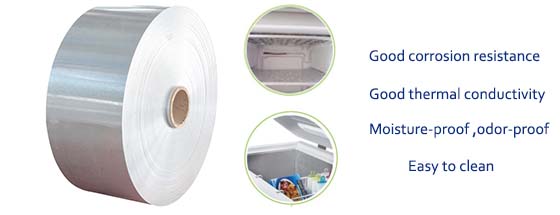

The most commonly used material for freezer and refrigerator liners is embossed aluminum sheet rolls. Compared with other metal and plastic materials, embossed aluminum coils have good corrosion resistance and thermal conductivity, are better able to adapt to the humid environment inside the refrigerator, provide better moisture-proof and odor-proof capabilities, and are easier to clean. 1050 embossed aluminum coil and 1060 embossed aluminum coil are corrosion-resistant pure aluminum products. After anodization, the corrosion resistance is further improved and it is more wear-resistant. Compared with 3 series aluminum alloy, it has a higher cost performance. , so it is favored by more manufacturers.
1050 1060 anodized embossed aluminum coil has higher hardness and strength than plastic materials, and has good anti-wear and anti-corrosion properties.
The surface of the embossed aluminum coil has been processed by high-temperature molding to form a certain concave and convex pattern, which can increase the surface area, facilitate air circulation, and reduce moisture accumulation; at the same time, the aluminum plate material has good anti-corrosion properties and is not easy to rust and produce odor in humid environments.
The surface of embossed aluminum coils has more obvious concave and convex patterns and is not easy to stain. It only needs to be wiped with ordinary cleaning products. The anodized 1050 embossed aluminum coil and 1060 embossed aluminum coil have improved surface hardness, are not easily scratched and worn, and have a long service life.
1050 and 1060 aluminum coils are industrial pure aluminum with relatively low prices. The performance of the aluminum coils is greatly improved after anodizing. Based on the metal’s thermal conductivity, corrosion resistance and production cost, it is extremely cost-effective to choose 1050 1060 anodized embossed aluminum coil for the inner metal plate of the freezer.
Flait Aluminum supplies high quality 1050 1060 anodized embossed aluminum coil for freezers. Commonly used states include H14, H16, etc. The thickness of the aluminum coil is 0.2mm-3.0mm, and the width can be up to 1500mm. Slitting services can be provided according to customer requirements. Specific specifications are as follows:
Alloy | 1050,1060 |
Temper(Base material) | H14/H16/H24 |
Thickness (mm) | 0.20-3.00 |
Width (mm) | Max.1500 |
Length (mm) | As per customer’s requirements |
Surface | Stucco embossed,Anodizing |
Pattern | orange peel veins |
Embossing thickness | ≥10μm |
Oxidation thickness | ≥3μm |
Inner Diameter | 505mm |
Outer Diameter | According to coil weight and finish |
Standard | ASTM B209,EN573-1 |
Packaging | Export packing: wooden pallets with plastics protection |
