1050 Aluminum Sheet Plate

Alloy: 1050
Temper(mm): O/F,H14,H18,H22,H24,etc.
Width(mm): 20-2650
Thickness(mm): 0.10-500
Length(mm): 500-16000

Quick Quote Get A Quote

The Introduction of 1050 Aluminum Sheet Plate

1050 Aluminum sheet plate contains more than 99.50% aluminum, which is one of the industrial pure aluminum. 1050 aluminum plate has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength. Has excellent forming properties, high corrosion resistance, good weldability and electrical conductivity. Click to Order

1050 aluminum sheet and strip are a product in the pure aluminum sheet series, and its chemical composition and mechanical properties are similar to 1060 series products. Industrial pure aluminum has the general characteristics of aluminum, low density, good electrical and thermal conductivity, good corrosion resistance, good plastic processing performance, can be processed into plates, strips, foils and extruded products, etc., and can be used for gas welding, argon arc welding, spot welding.ation and other fields. We can customize processing according to customer needs.

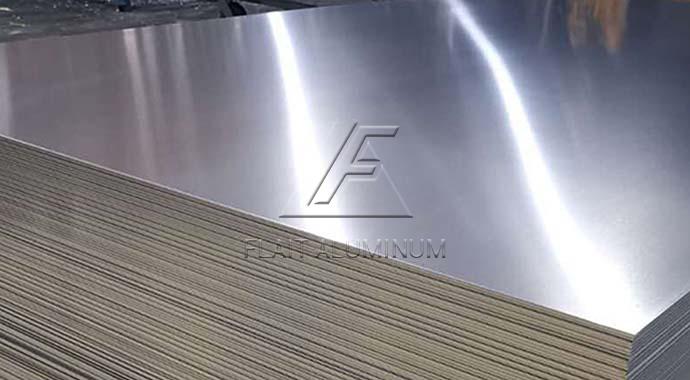

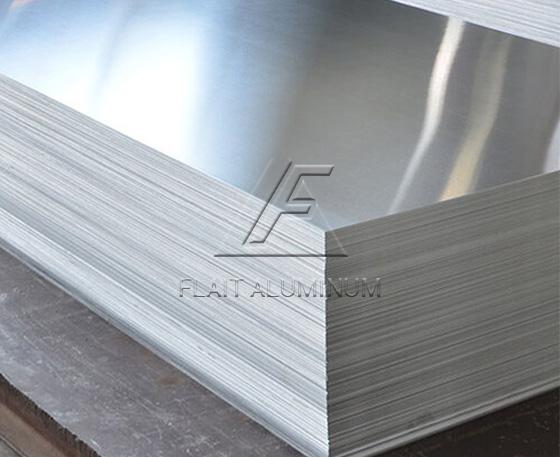

1050 aluminum sheet

The Product Specification of 1050 Aluminum Sheet Plate

Alloy	1050
Temper	O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, etc.
Thickness (mm)	0.1-500
Width (mm)	20-2650
Length (mm)	500-16000
Application	Lithium battery soft connection, cosmetic bottle cap, tab material, explosion-proof valve, heat sink, printing, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	-	Single	Total	99.50
										0.03	-

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HBWα

1050-H24

105-145

Physical properties:

Alloy & Temper	Thermal expansion coefficient（20-100℃） µm/m•k	Melting point range（℃）	Conductivity 20℃（68°F）（%IACS)	Resistivity 20（68°F）Ωmm2/m	Density（20℃)（g/cm³）
1050-H24	23.6	646-657	61.3	0.0281	2.71

The Product Features of 1050 Aluminum Sheet Plate

1050 aluminum sheet plate has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity.
1050 aluminum sheet plate can be gas welded, hydrogen atom welded and contact welded.
1050 aluminum sheet plate is easy to withstand various pressure processing, extension and bending.
Long service life, low cost, and high recycling value.
The processing technology of 1050 aluminum plate is mature, the price has a great advantage compared with other series of alloy aluminum plates.

The Application of 1050 Aluminum Sheet Plate

1050 Aluminum sheet plate is often used in daily necessities, lighting fixtures, reflectors, decorations, chemical industry containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products. In some occasions that require high corrosion resistance and formability, but not high requirements for strength, chemical equipment is its typical application.
