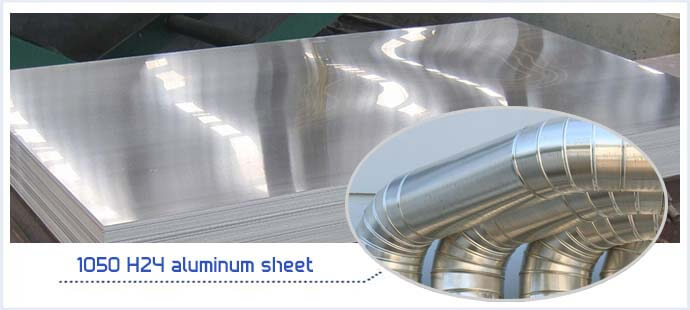

1050 H24 Aluminum Sheet for Ventilation Ducts

“1050”refers to aluminum alloy, is a commercially pure aluminum with excellent corrosion resistance and machinability.

“H24” refers to the tempered state of aluminum. In this case, it indicates that the aluminum has been strain hardened and partially annealed, with moderate strength and good formability.

1050 H24 aluminum sheet is widely used in ventilation ducts due to its anti-corrosion properties, light weight, and simplified manufacturing process. Its adaptability to duct conditions and compatibility with HVAC systems make it a top choice.

Ventilation ducts are widely used and are found almost everywhere, from offices to public buildings. These ventilation systems are routine installations, and the market tends to favor aluminum alloy sheets as their structural materials, especially 1050 h24 aluminum sheets, because of its superior performance.

Specifications of 1050 H24 aluminum sheet for ventilation ducts

Alloy: 1050

Thickness: 0.1-500mm

Width: 20-2650mm

Length: 500-16000mm

Material state: F, O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H111, H112, H114

Typical products: PS board base, signboard, heat sink, stamping parts, lamps, battery soft connection, ventilation ducts, etc.

Advantages of 1050 H24 aluminum sheet for ventilation ducts

• High plasticity and corrosion resistance

1050 H24 aluminum alloy plates have high plasticity and can be processed by complex forming without cracking. They also have excellent corrosion resistance, ensuring durability in various environments.

• Good electrical and thermal conductivity

1050 alloy plate has good electrical and thermal conductivity. This property is beneficial to ventilation ducts because it ensures effective heat transfer, thereby reducing the risk of overheating or heat accumulation within the system.

• Lightweight and reinforced

1050 H24 aluminum plate is mainly composed of pure aluminum, and its density is close to 2700 kg/m³, which is about 35% of the density of iron. This lightweight material makes it very suitable for ventilation ducts because it reduces the overall weight of the system while maintaining strength.

• Economical and commonly used

Since 1050 H24 alloy aluminum plate does not contain other technical elements, its production process is relatively simple, which reduces costs. Due to its excellent performance and economical price, they are widely used in traditional industries.

• Standardized composition

According to international standards and Chinese technical specifications (GB/T3880-2006), the aluminum content of 1050 H24 alloy aluminum plate exceeds 99.5%, ensuring consistent quality and performance.

• Typical applications

1050 H24 alloy aluminum sheet is commonly used for ventilation ducts, for applications requiring good corrosion resistance and formability, such as chemical containers, heat exchangers and other similar equipment.
