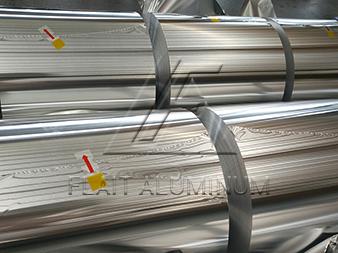

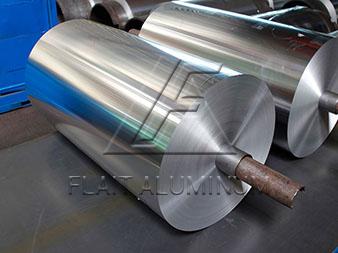

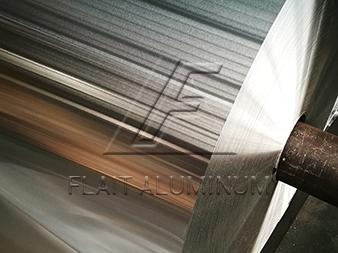

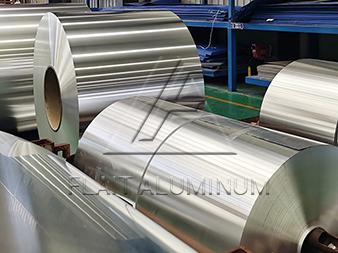

1060 Aluminum Foil for Battery

2023-11-14 14:39:25

The aluminum content of 1060 aluminum foil is as high as 99.6%, which can maintain good electrical conductivity and chemical stability of the battery. The thickness and size accuracy of 1060 Aluminum foil for battery directly affect the performance and stability of the battery. FLAI ALUMINUM welcomes customers to order 1060 aluminum foil in precise thickness, width and length.

1060 O aluminum foil is suitable for manufacturing flexible battery packaging materials or battery casings that require certain bending properties. 1060 H14 aluminum foil is commonly used in battery case materials that require a certain degree of hardness and strength, providing appropriate tensile resistance and corrosion resistance. 1060 H18 aluminum foil is suitable for battery casing materials that require higher hardness and strength. It can provide better tensile resistance and hardness, and is especially suitable for applications with particularly strict requirements on battery casings.

Specification of 1060 Aluminum Foil for Battery

Alloy 1060
Temper O, H14, H18
Thickness (mm) 0.016-0.2
Width (mm) 100-1600
Length (mm) C
Surface Mill finish
ID 76mm,152mm,408mm,508mm or customized
Standard ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
Certificate Mill Test Certificate, Certificate of origin: Form A, Form E, CO
Package Export standard, Eye to sky or eye to wall

Chemical Composition

Alloy Al (%) Si (%) Fe (%) Cu (%) Mn (%) Zn (%) Mg (%) Ti (%) V
1060 99.60 0.0431 0.203 0.0022 0.0104 0.0093 0.0013 0.02 0.0039



Features of 1060 Aluminum Foil for Battery

  • Pure aluminum material
  • Lightweight and durable
  • Good ductility
  • Good thermal conductivity
  • Easy surface treatment

Quality Requirements of 1060 Aluminum Foil for Battery

  1. The surface of 1060 aluminum foil is uniform in color, clean and flat.
  2. The purity and content of other components of the aluminum foil must meet the requirements for battery production.
  3. The thickness of the aluminum foil must meet the requirements for battery production and be uniform in thickness.
  4. The mechanical properties such as strength and toughness of aluminum foil must also meet the requirements of battery production.
  5. The surface of the aluminum foil should be smooth and flat, without obvious scratches, bubbles and other defects.



Original Source: https://www.flait-aluminum.com/Battery-Shell-Foil.html

Tags: 1060 aluminum foil
