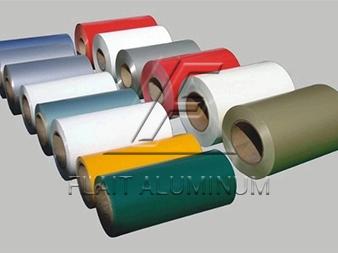

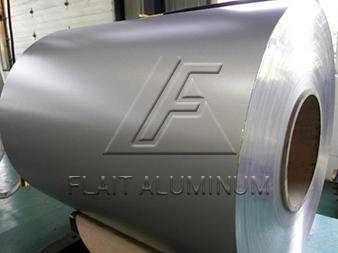

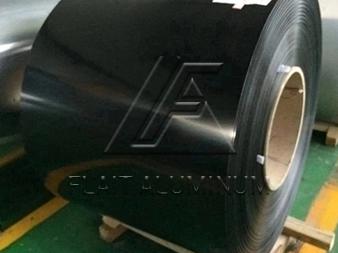

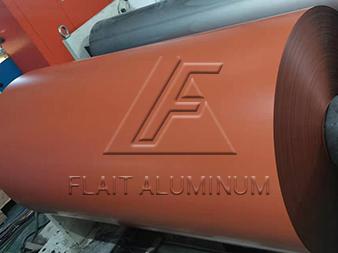

1060 color coated pre-painted aluminum coil is a pure aluminum and contains 99.6% aluminum elements that is low in strength and good in deep drawing quality. 1060 aluminum coil is good for anodizing and bright surface, so it is an ideal aluminum to make mirror sheets and color coated mirror sheet coils. 1060 color coated pre-painted aluminum coil is widely used in roofing, ceiling, heat insulation, curtain walls etc.Click to Order
Specification of 1060 Color Coated Pre-painted Aluminum Coil
Alloy |
1060 |
Thickness (mm) |
0.08-5.00 |
Width (mm) |
<2650mm |
Length (mm) |
C |
ID |
150mm,405mm,505mm,508mm,510mm |
Coating Paint |
PE,PVDF |
Coating thickness |
4μm-20 μm for one-time coating, 25μm-28 μm for twice coating, 35μm-38μm for three-time coating |
Color |
Blue,red,green,pink,purple,brown,white,bla
ck(RAL or as required by clients) |
Standard |
YS/T431-2000 |
Advantages of 1060 Color Coated Pre-painted Aluminum Coil
- Good temperature resistance. The melting point of aluminum is 660 degrees, and the general temperature does not reach its melting point.
- Environmentally friendly. The color of the aluminum coil does not change even under a test in chromium-free treatment solution. The roller paint contains active chemical molecules to promote the formation of a protective layer on the surface of the coil and active chemical molecules are stable and easy to recycle, perfectly meeting environmental requirements.
- Strong corrosion resistance. Because of its tight surface oxide film, the color coated 1060 aluminum coil is strong in adhesion, oxidation resistance, acid resistance, alkali resistance, corrosion resistance, decay resistance and UV resistance.
- Long lasting in color. The color of 1060 colored aluminum coil is even, delicate, soft and beautiful, distinguishing itself from pre-painted aluminum coil rolls of traditional spraying. While it’s used in ceiling, its color will not change no matter how large the ceiling area is.
- Rigid and tough combination. The strength of the board is extremely high. It’s free to cut, slit, arc, balance and drill it for joint fixing and edge compression molding.
Application of 1060 Color Coated Pre-painted Aluminum Coil
1060 color coated pre-painted aluminum coil is widely used in roofing, ceiling, heat insulation, curtain walls etc.
