1070 Aluminum Sheet Plate

Alloy: 1070
Temper: O,H22,H24,H26,H18
Width(mm): 20-2650
Thickness(mm): 0.10-500
Length(mm): 500-16000

Quick Quote Get A Quote

The Introduction of 1070 Aluminum Sheet Plate

1070 aluminum sheet plate is the aluminum alloy plate with the highest Al content among 1 series pure aluminum, with an Al content as high as 99.7%. It has the thermal conductivity, electrical conductivity, corrosion resistance and good plasticity of 1 series aluminum plates, and its mechanical properties are slightly stronger than other 1 series aluminum plates. The price is slightly more expensive than other 1 series aluminum plates.

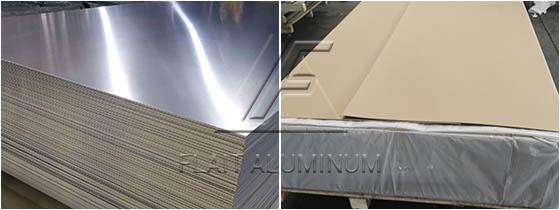

1070 aluminum sheet

The Product Specification of 1070 Aluminum Sheet Plate

Alloy	1070
Temper	O, H12, H14, H16, H18, H22, H24, H32, H34, H36, H38, etc.
Thickness (mm)	0.1-500
Width (mm)	20-2650
Length (mm)	500-16000
Application	Radiators, charging piles, anti-corrosion insulation, protective nets for wires and cables, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
1070	0.20	0.25	0.03	0.03	0.03	-	0.07	0.03	-	Single	Total	99.70
										0.03	-

The Product Features of 1070 Aluminum Sheet Plate

1070 aluminum plate has good thermal and electrical conductivity, corrosion resistance and high plasticity.
1070 aluminum sheet plate can be gas welded, hydrogen atom welded and contact welded.
1070 aluminum sheet plate is easy to withstand various pressure processing, extension and bending.

The Application of 1070 Aluminum Sheet Plate

1070 Aluminum plate is often used to manufacture some structural parts with specific properties, such as gaskets and capacitors made of aluminum foil, shells of electronic products, electronic tube isolation nets, wires, protective sleeves for cables, nets, wire cores, and aircraft ventilation system parts and decorations.

Related Products

1060 Aluminum Coil

1060 aluminum coil contains more than 99.60% aluminum, which is industrial pure aluminum and belongs to a commonly used series in the aluminum strip series. 1060 aluminum coil has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity. 1060 aluminum coil also has the advantages of high elongation, high tensile strength, excellent electrical conductivity, and high formability, which can meet the requirements of conventional processing (stamping, stretching). However, 1060 aluminum coil has low strength, heat treatment can not strengthen the machinability is not good; gas welding, hydrogen atom welding and contact welding, not easy to braze; easy to withstand various pressure processing and stretching, bending.

1050 Aluminum Coil

1050 aluminum coil contains more than 99.50% aluminum, which is one of the pure aluminum series. 1050 aluminum coil has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength. Has excellent forming properties, high corrosion resistance, good weldability and electrical conductivity.

1100 Aluminum Coil

The 1100 aluminum coil belongs to the 1-series alloy series, and the aluminum alloy content of 1100 must reach more than 99.00%. Both 1100 aluminum coil and 1060 aluminum coil belong to industrial pure aluminum.

3003 Aluminum Coil

3003 aluminum coil belongs to AL-Mn series alloy, which is a kind of anti-rust aluminum widely used, with high corrosion resistance. The proportion of manganese content can reach 1%, because the hardness of 3003 aluminum coil is very high.

3004 Aluminum Coil

3004 aluminum coil is an AL-Mn alloy, and it is also a widely used anti-rust aluminum. 3004 aluminum coil has good formability, weldability and corrosion resistance. For processing parts that require good formability, high corrosion resistance and good weldability.

3104 Aluminum Coil

3104 aluminum coil has good deep drawing performance, proper elongation, good corrosion resistance and processing performance, and can be smelted and processed into alloys with different hardness according to different application requirements. 3104 aluminum coils are often used to make power battery casings in lightweight vehicles, cooking utensils, food storage devices, tanks and warehouses on transportation equipment, sheet metal pressure vessels and pipes, etc.

3105 Aluminum Coil

3105 aluminum coil belongs to the aluminum-manganese alloy series, which has good anti-rust performance, good electrical conductivity, and the electrical conductivity can reach 41%. 3105 aluminum coil has high plasticity in the quenching condition, and the plasticity is still stronger in the semi-chilled hard bottoming, low plasticity, excellent corrosion resistance, excellent electric welding and drilling performance in the cold hard bottoming difference.

1070 Aluminum Coil

The 1070 aluminum coil contains 99.7% aluminum, and has the characteristics of high plasticity, corrosion resistance, good electrical conductivity and thermal conductivity. Its advantages are often used to manufacture some structural parts with specific properties, such as protective nets for wires and cables, wire cores and coils. Aircraft ventilation system parts and decorations.

1050 Aluminum Sheet Plate

1050 aluminum plate contains more than 99.50% aluminum, which is one of the industrial pure aluminum. 1050 aluminum sheet has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength. Has excellent forming properties, high corrosion resistance, good weldability and electrical conductivity.

1060 Aluminum Sheet Plate

1060 Aluminum plate contains more than 99.60% aluminum. 1060 aluminum plate has the advantages of high elongation, high tensile strength, excellent electrical conductivity and high formability, and can meet the requirements of conventional processing (stamping, stretching).

1100 Aluminum Sheet Plate

1100 aluminum plate contains 99.00% aluminum. Usually, it cannot be thermally treated. It has low density and good plasticity. It is usually used for parts that require good formability, high corrosion resistance, and high strength.

3004 Aluminum Sheet Plate

3004 Aluminum plate is an AL-Mn alloy, which is also a widely used anti-rust aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties: It has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, and poor machinability.

3003 Aluminum Sheet Plate

3003 aluminum plate belongs to AL-Mn series alloy, which is a kind of anti-rust aluminum widely used. The strength of this alloy is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment. Therefore, cold working method is used to improve its mechanical properties: It has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, but poor machinability.

3A21 Aluminum Sheet Plate

The 3A21 aluminum plate is an Al-Mn alloy, which is a widely used anti-rust aluminum. Its strength is not high and it cannot be strengthened by heat treatment. Therefore, cold working methods are often used to improve its mechanical properties; it has high plasticity in the annealed state. Good plasticity when hardened, low plasticity when cold hardened, good corrosion resistance, good weldability, poor machinability.

3005 Aluminum Sheet Plate

The 3005 aluminum plate is an aluminum alloy with Mn as the main alloying element. It is a kind of aluminum alloy that cannot be strengthened by heat treatment. Therefore, cold working method is used to improve its mechanical properties. Although the strength of this alloy is not very high, it is higher than the 1 series of industrial pure aluminum, and its strength is about 20% higher than that of 3003 aluminum plate. It belongs to medium strength, good plasticity and good welding performance.

3104 Aluminum Sheet Plate

3104 aluminum plate is a deformed alloy, its tensile strength is ≥275MPa, and its elongation is as high as 20%. It is based on the addition of other trace elements on the basis of aluminum and manganese elements, so that it has appropriate elongation, good corrosion resistance and processing performance, and It can be smelted and processed into alloys with different hardness according to different application requirements. 3104 aluminum plate is often used to make power battery casings in lightweight vehicles, cooking utensils, food storage devices, tanks and warehouses on transportation equipment, metal sheet pressure vessels and pipes, etc.

3105 Aluminum Sheet Plate

3105 aluminum plate has excellent corrosion resistance, excellent plasticity and process performance, and has excellent performance in gas cutting and arc welding.
