Home > Product > Special Aluminum > 1350 HO/O Aluminum Strip for Transformers
For more detailed information including pricing, customization and shipping.

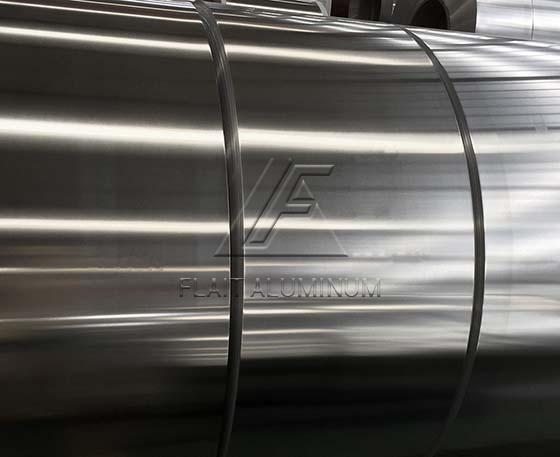

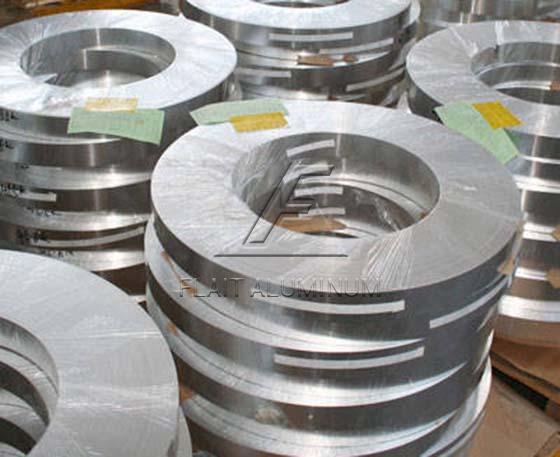

Aluminum foil strip for transformer winding, also called aluminum transformer foil strip, is mainly used for dry type and oil-immersed transformer winding. The thickness of aluminum strip for transformer winding ranges from 0.08mm to 3.00mm and the width ranges from 10mm to 1500mm. Transformer aluminum strip has high conductivity, good corrosion resistance and beautiful appearance, aluminum foil strip for transformer winding is essential in the transformer production process. 1350 O aluminum foil strip, also known as 1350 aluminum foil strip for transformer winding, is a high-purity aluminum alloy with an aluminum content as high as 99.50% or more, has good electrical conductivity, low resistivity, and is easy to process into various shapes and dimensions of conductive material.
| Alloy | 1350 aluminum strip |
| Temper | O/HO |
| Thickness (mm) | 0.08 - 3.00 |
| Width (mm) | 10 - 1500 |
| Conductivity (% IACS) | 1350-O ≥ 62% IACS |
| Elongation (%) | ≥20 (Thickness: 0.08-0.20) |
| ≥25 (Thickness: 0.20-3.00) | |
| U. T. S | 60-95N/mm2 |
| Density in 20℃ | 2.703kg/m3 |
| Resistivity (Ω·mm² /m) | ≤0.02825 |
| Burr's height | 0.01-0.03mm vary with thickness of the strip |
| Collapsed side's height | 0.05-0.1mm |
| ID | Ø 150mm,Ø300mm, Ø400mm, Ø500mm |
| Surface | Smooth, free from scratches and impurities |
| Application | Transformer winding |
| Packing | Eye to wall and eye to sky, wooden pallet and wooden case |
| Sample | Available |
| Remark | Transformer aluminum strip can be customized |
Chemical composition of 1350 HO/O aluminum strip for transformers
| Alloy | Al (%) | Si (%) | Fe (%) | Cu (%) | Mn (%) | Zn (%) | Mg (%) | Ti (%) | V |
| 1350 | 99.50 | 0.0431 | 0.203 | 0.0022 | 0.0104 | 0.0093 | 0.0013 | 0.02 | 0.0039 |
Edge deburring range of 1350 HO/O aluminum strip for transformers
| Thickness (mm) | ≤0.20 | ＞0.20 |
| Burr | ≤0.03 | ≤0.05 |
| Camber | ≤0.5 | ≤2 |
| Layering | ≤4 | ≤5 |
Tolerance range of 1350 HO/O aluminum strip for transformers
| Alloys | 1350-O/HO | |||||||
| Thickness (mm) | 0.08-0.20 | 0.20-0.40 | 0.40-0.80 | 0.80-1.10 | 1.10-1.40 | 1.40-2.00 | 2.00-2.50 | 2.50-3.00 |
| Thickness Tolerance (mm) | ±8% of nominal thickness | ±0.02 | ±0.03 | ±0.04 | ±0.05 | ±0.06 | ±0.07 | ±0.08 |
| Width (mm) | ＜100 | 100-300 | 300-600 | 600-1250 | 1250-1500 | |||
| Width Tolerance (mm) | ±0.10 | ±0.20 | ±0.30 | ±1.00 | ±2.00 | |||
◆ The edge is smooth, no burrs
◆ Round edge
◆ High conductivity
◆ High purity
◆ Totally annealed
◆ Surface clean
◆ Stable
◆ Low resistivity
◆ High quality, competitive price, good reputation
◆ Free sample, prompt delivery
1350 HO transformer aluminum strip is widely used in large-scale transformers, solar energy, power industry, power capacitors, dry-type transformer windings, etc.
