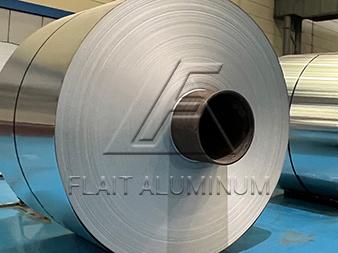

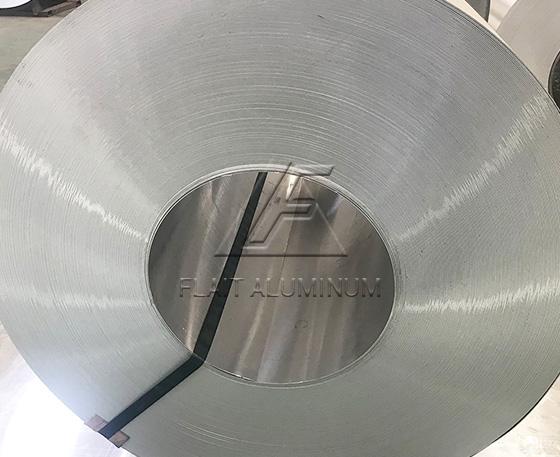

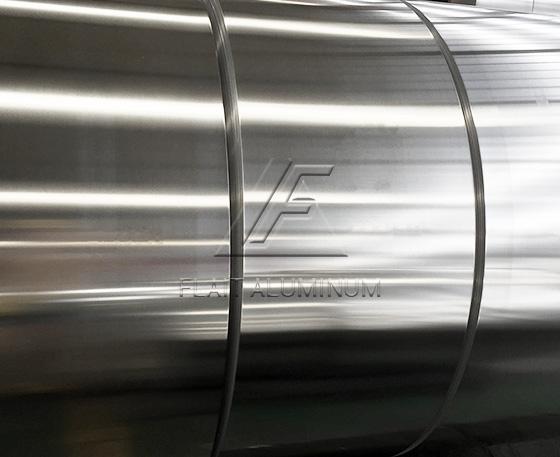

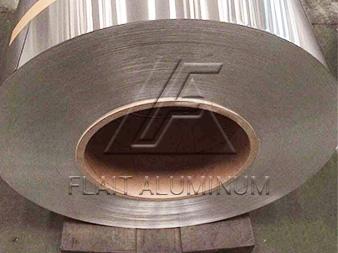

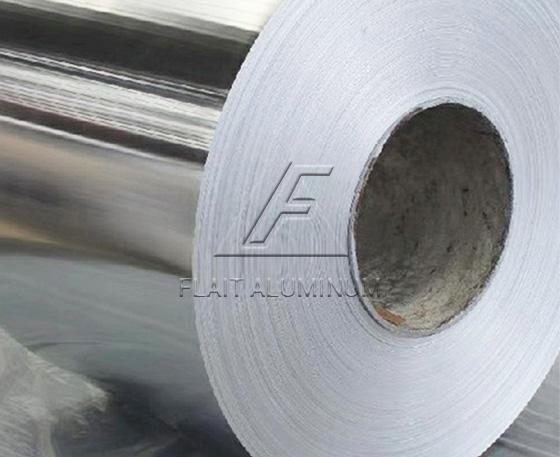

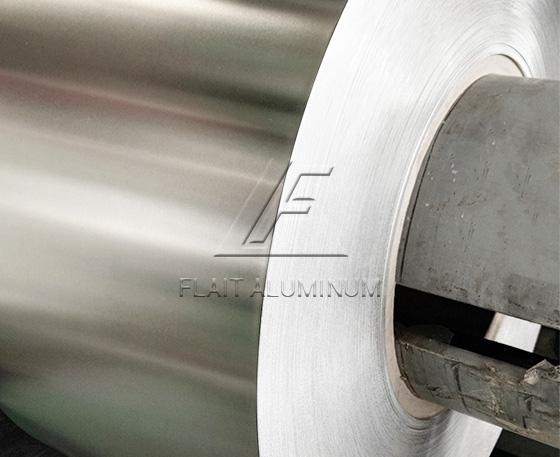

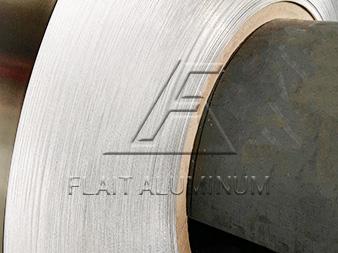

3003 Aluminum Coil

Alloy: 3003
Temper: O,H14,H24,H12,H16,H18,etc.
Width(mm): 100-2650
Thickness(mm): 0.20-10.00
Length(mm): C

3003 Aluminum Coil

Quick Quote Get A Quote

The Introduction of 3003 Aluminum Coil

3003 Aluminum coil belongs to AL-Mn series alloy, which is a kind of anti-rust aluminum widely used, with high corrosion resistance. The proportion of manganese content can reach 1%, because the hardness of 3003 aluminum coil is very high. The strength of this alloy is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment, so the cold working method is used to improve its mechanical properties: it has high plasticity after annealing, and the plasticity is still good when semi-cold hardening. Low plasticity, good corrosion resistance and good weldability when cold work hardened, but poor machinability.Click to Order

The Product Specification of 3003 Aluminum Coil

Alloy	3003 aluminum coil strip
Temper	F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,etc.
Thickness (mm)	0.2-10
Width (mm)	100-2650
Length (mm)	C
ID	Ø505mm or customized

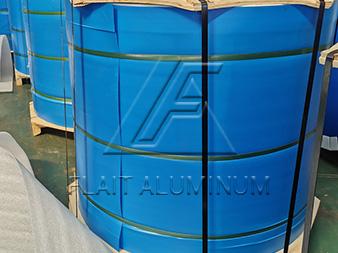

Package	Eye to sky or Eye to wall
Surface	Checkered aluminum coil, anti-slip aluminum coil, stucco embossed, anodized
Clad material	Aluminum core material and aluminum clad material, the core material is 3003, and the clad material is 4043 alloy, such as 4343+3003+4343
Application	Decoration, battery shell, insulation pipes, vehicles, etc.
Sample	Available

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
3003	0.60	0.70	0.05-0.20	1.0-1.5	-	-	0.10	-	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HB/Wα

3003-H24

148-185

115

The Product Features of 3003 Aluminum Coil

3003 aluminum coil has good formability and good processing characteristics.
3003 aluminum coil has high corrosion resistance and good weldability.
3003 aluminum coil has good deep drawability and high plasticity.

The Application of 3003 Aluminum Coil

3003 Aluminum coil is often used in mobile phone battery shell materials, lighting decorations, interior decoration, air-conditioning pipes, automobile fuel tanks, tanks, electrolytic capacitors, refrigerators, air-conditioning ventilation pipes and other fields. This product has good rust resistance.

1. Battery shell: new energy vehicle power battery shell, top plate, separator, which can be stamped into a square or round battery shell.

2. Water cooling plate: 3003mod aluminum plate, 3003*4343/3003*4045 aluminum plate can be used for new energy vehicle power battery brazing water cooling plate or condensation/radiation equipment.

3. Heat dissipation fins: mostly used in heat dissipation equipment.

4. Pipe insulation: is mostly used in chemical factories, and its anti-rust function is better than that of 1 series aluminum coils.

5. 3003 Aluminum foil: aluminum foil for honeycomb core, aluminum foil for lunch box, aluminum foil for container.
