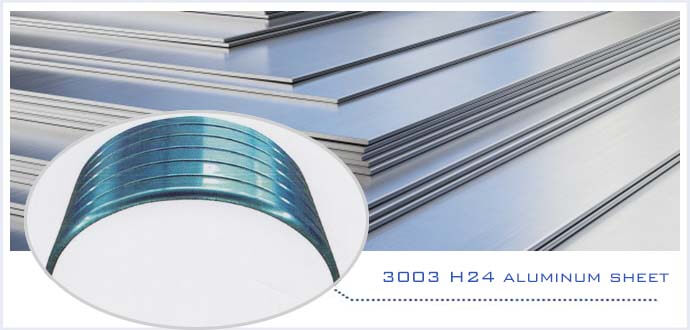

3003 H24 aluminum sheet for truck fender

Car fenders are baffles installed on car wheels to protect the mechanical structure and block sediment and rainwater. Its materials mainly include aluminum alloy baffles, plastic baffles, rubber baffles, etc. Among them, truck fenders are mostly made of aluminum sheets. Aluminum alloys commonly used in automobile fenders include 5083 aluminum sheet, 5052 aluminum sheet, 5182 aluminum sheet and 3003 aluminum sheet.

3003 aluminum sheet belongs to the AL-Mn series alloy. It is a widely used anti-rust aluminum. Its strength is higher than industrial pure aluminum. It has good corrosion resistance, good weldability and poor machinability. 3003 H24 aluminum sheet refers to the semi-hard state of the aluminum sheet after cold processing, which improves the mechanical properties and makes it easier to process and form. It is an ideal choice for truck fender manufacturing.

Specifications and features of 3003 H24 aluminum sheet for truck fender

◆ Alloy: 3003

◆ Temper: H24

◆ Thickness: 0.2-4.5mm

◆ Width: Max. 2600mm

◆ Length: Max. 16000mm

◆ Tensile strength σb (MPa): 140-180

◆ Conditional yield strength σ0.2 (MPa):≥115

Reasons to choose 3003 H24 aluminum sheet for truck fender

• Lightweight

The density of 3003 aluminum sheets is only one-third that of steel, which allows fenders made using this aluminum alloy to significantly reduce the overall weight of the vehicle while maintaining strength, helping to improve fuel efficiency and load capacity ability.

• Corrosion resistance

3003 aluminum alloy has excellent anti-rust properties, which can effectively resist oxidation and corrosion and extend the service life of the fender. An oxide film forms on the surface of this material, further enhancing its corrosion resistance.

• Good mechanical properties

The tensile strength of this aluminum alloy is between 140-180 MPa, and the conditional yield strength is greater than 115 MPa, which is sufficient to meet the strength requirements required for truck fenders during use. In addition, 3003 aluminum alloy also has good weldability and processability, making it easy to manufacture and repair.

• Formability

3003 H24 aluminum sheet is easy to process and can be formed into complex shapes through stamping, bending and other processes to adapt to the design needs of different models. This flexibility makes 3003 aluminum ideal for making fenders

• Economy

Compared with other materials, 3003 aluminum sheets are less expensive to maintain and replace. At the same time, due to their durability, they reduce the frequency of replacement, thereby reducing long-term use costs.

Application of 3003 H24 aluminum sheet for truck fender

In practical applications, 3003 aluminum sheets are widely used as fenders for light and heavy vehicles, especially on vehicles such as trucks and vans that need to withstand greater impact and wear. Its lightweight characteristics also reduce the overall weight of the vehicle, helping to improve the vehicle’s economy.
