Aluminum honeycomb panel is a common environmentally friendly decoration material in life. It is a new composite material composed of upper and lower layers of aluminum panels and a honeycomb core. It is not only fireproof and corrosion-resistant, but also has high rigidity, high flatness and not easy to deform. It is widely used in civil construction and vehicle and ship decoration fields. 3003 aluminum sheet has excellent performance and is considered an ideal honeycomb panel material.

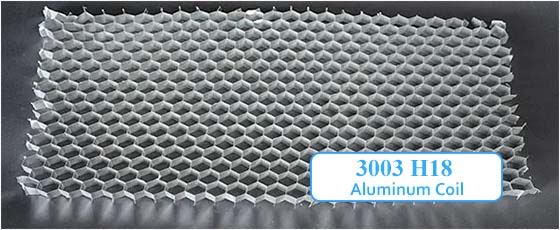

3003 H18 is a hard state of aluminum alloy that is directly rolled without annealing. It has strong hardness without annealing and its strength is much higher than that of 1 series aluminum alloy. It has the characteristics of light weight, high strength, corrosion resistance and no low temperature brittleness, making it an ideal honeycomb core material. Commonly used thicknesses are 0.02mm-0.06mm. At the same time, 3003 H18 aluminum coil is also widely used in aluminum-plastic panels in the construction field.

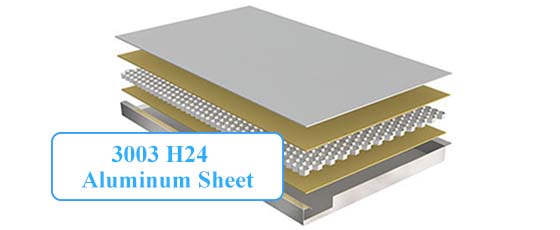

3003 H24 is an incomplete annealed state after rolling. The tensile strength of the aluminum sheet in this state is significantly higher than that of the annealed state. It is a common base material for making the face-sheet of aluminum honeycomb panels. The commonly used thickness of the panel is 0.8mm-1.5mm, which can be fluorocarbon spraying or light-resistant paint spraying.
| Alloy | 3003 |
| Alloy Types | Sheet, sheet, Coil,Foil |
| Material Temper | O, H14, H24 |
| Thickness(mm) | 0.02-10 |
| Width(mm) | 100-1600 |
| Length(mm) | C |
| Alloy-Temper | Tensile Strength Rm/Mpa | Yield strength Rp0.2/Mpa | Elongation % | Hardness |
| 3003 H18 | ≥190 MPa | ≥170 | 1-2 | 60 |
| 3003 H24 | 145-195 | ≥115 | 4-6 | 45 |
Flait Aluminum is a professional aluminum sheet coil and foil manufacturer. In addition to being suitable for aluminum honeycomb panels, the 3003 aluminum sheet coil produced can also be used for building decoration, storage materials, antenna pot materials, power battery casings, pipe insulation, and automobile heat insulation panels. wait. In addition to standing specifications, we can also customize production according to customer needs and provide free cutting and sample services.
