3004 Aluminum Sheet Plate

Alloy: 3004
Temper: O,H12,H14,H16,H18,H22,H24,H26,H32
Width(mm): 100-2650
Thickness(mm): 1.00-500
Length(mm): 500-16000

Quick Quote Get A Quote

The Introduction of 3004 Aluminum Sheet Plate

3004 Aluminum sheet plate is an AL-Mn alloy, which is also a widely used anti-rust aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties: it has high plasticity in the annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, and poor machinability.

The requirements of 3004 aluminum plate and 3003 aluminum plate alloy are basically the same in all aspects. However, the strength of 3004 aluminum plate is also higher than that of 3003 aluminum plate, which is relatively good in terms of corrosion resistance and product formability. 3004 aluminum sheet plate has high formability, solubility, corrosion resistance, good processing formability and excellent performance in corrosion-resistant devices.Click to Order

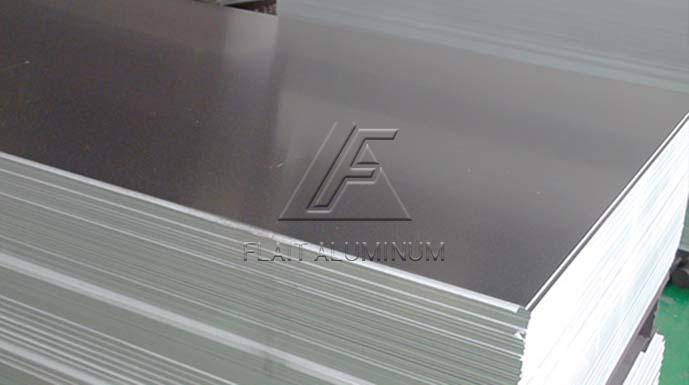

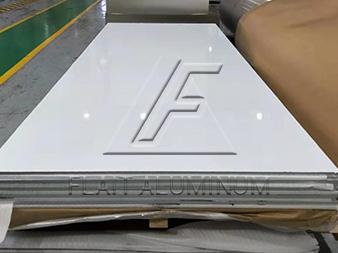

3004 aluminum sheet

The Product Specification of 3004 Aluminum Sheet Plate

Alloy	3004 aluminum sheet plate
Temper	O, H12, H14, H16, H18, H22, H24, H26, H32,etc.
Thickness (mm)	0.10-100
Width (mm)	100-2650
Length (mm)	500-16000
Application	Lamp head material, louver material, wide curtain wall panel, liquid crystal back panel material, aluminum base material for color coating, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr	Others		AL
3004	0.30	0.70	0.25	1.00-1.50	0.80-1.30	-	0.25	-	-	Single	Total	Balance
										0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Hardness

HBWα

3004-H24

150-285

110

The Product Features of 3004 Aluminum Sheet Plate

The strength of 3004 aluminum plate is higher than that of 3003 aluminum plate.
Excellent formability, weldability and corrosion resistance.
Smooth surface, good plasticity and pressure resistance.
Use advanced grinding machine equipment to reduce product defects.

The Application of 3004 Aluminum Sheet Plate

3004 aluminum plate and strip are mainly used in chemical product production and storage devices, thin plate processing parts, building materials, building baffles, cable ducts, sewers, various lighting parts, beverage cans, corrugated boards, building materials, colored aluminum plates, lamp holders, LCD TV backs sheet.
