3104 Aluminum Sheet Plate

Alloy: 3104
Temper: F/O,H12,H14,H18,H19,H22,H24
Width(mm): 100-2650
Thickness(mm): 1.00-500
Length(mm): 500-16000

Quick Quote Get A Quote

The Introduction of 3104 Aluminum Sheet Plate

3104 Aluminum sheet plate is aluminum-magnesium-manganese alloy, is a 3-series anti-rust aluminum plate alloy. Its tensile strength is ≥275MPa, and its elongation is as high as 20%. The main alloy components of 3104 aluminum plate are magnesium and manganese, the magnesium content is between 0.8-1.2 and the manganese content is between 0.8-1.4. It has appropriate elongation, good corrosion resistance and processing performance, and It can be smelted and processed into alloys with different hardness according to different application requirements. 3104 aluminum plate has good deep drawability and corrosion resistance, and is easy to process and shape. It is widely used in aluminum shutters, lamp cap materials, can lid materials, automobile fuel tanks, aluminum bottle cap materials, and pipe insulation.Click to Order

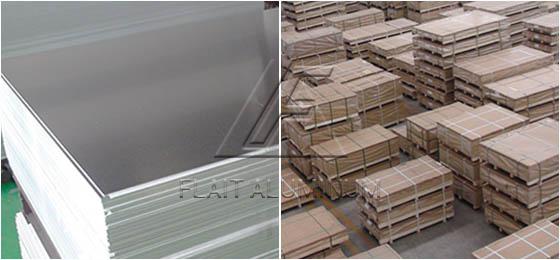

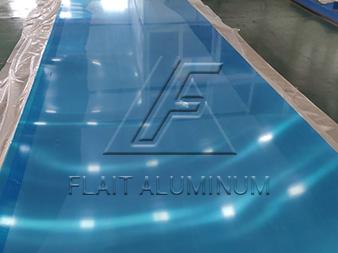

3104 Aluminum sheet

The Product Specification of 3104 Aluminum Sheet Plate

Alloy	3104 aluminum sheet plate
Temper	F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H112,H114,etc.
Thickness (mm)	1.0-500
Width (mm)	100-2650
Length (mm)	500-16000
Application	Canned material, oxidized material, canned beer, canned cola, etc.

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Cr	Others		Al
3104	0.60	0.70	0.05-0.20	1.00-1.50	-	0.10	-	Single	Total	Remain
								0.05	0.15

Mechanical properties:

Alloy & Temper

Tensile strength

Rm/Mpa

Yield strength

Rp0.2/Mpa

Elongation

Earring

3104-H19

290-320

265-290

≥4

≤2.5

The Product Features of 3104 Aluminum Sheet Plate

3104 Aluminum sheet has high stamping elongation and good strength. As a can lid material, it has the characteristics of good metallurgical quality, high dimensional accuracy, and small thickness fluctuation. It also has good punching performance, excellent surface quality and mechanical properties.
3104 aluminum plate for the substrate of aluminum-magnesium-manganese roofing and color-coated coils. The surface is clean and tidy, free of oil, black spots, stick marks, and pitting. It has stable performance, bright surface color, good coloring performance, and strong corrosion resistance stability, strong formability and decoration.
3104 Aluminum plate can be used for parts of the lamp head. The product has stable performance, strong stretchability, not easy to break, high product formability, high formability, no waste, and outstanding advantages. It can also be used for some appearance parts, storage tanks, high temperature trays, pressure cooker containers and so on.

The Application of 3104 Aluminum Sheet Plate

1. 3104-H19 aluminum coil strip is used for the production of can bottoms and lids. Thickness (mm): 0.208-0.360;Width (mm): 800-1730.

2. 3104 aluminum coil is used to produce indoor and outdoor aluminum decorative products, such as blinds, color-coated aluminum coils, lamp base materials, etc.

3. 3104 aluminum plate is used for stamping container boxes such as fast food boxes, aluminum beer cups/coffee cups/drink cups, and coffee capsules, etc.
