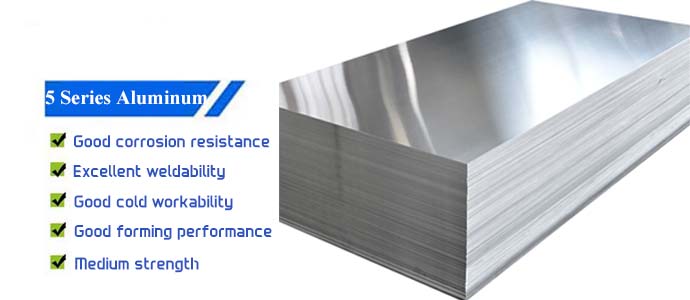

5 series aluminum sheet is an aluminum-magnesium alloy aluminum sheet, with magnesium as the prominent element, and has a wide range of uses, is the most promising alloy aluminum sheet. Among them, the most representative aluminum sheet plate grades are 5052 aluminum plate, 5083 aluminum plate and 5754 aluminum plate, which are mainly used for fuel tanks, ships, cars, tank trucks, etc.
Flait Aluminum has a large number of aluminum sheets in stock all year round, which can be cut and customized.
5052 aluminum plate sheet5052 aluminum sheet is the most representative 5 series alloy aluminum sheet and is widely used. 5052 aluminum plate has medium strength, good forming processability, corrosion resistance and weldability, high fatigue strength, and is a commonly used high rust-proof aluminum. 5052 alloy aluminum sheet is widely used in the automotive industry, generally used for automotive fuel tanks, oil pipes, conduits, low-load parts, etc., and can also be used in the production of various liquid containers.
5083 aluminum plate sheetThe magnesium content of 5083 aluminum plate is high, belonging to high magnesium alloy, which cannot be strengthened by heat treatment, has good strength and corrosion resistance, good machinability, can be welded, and can be anodized. 5083 aluminum plate sheet can be used for shipbuilding, as well as automobile and aircraft welding parts, subway light rail, pressure vessels that require strict fire protection (such as liquid tankers, refrigerated trucks, refrigerated containers), refrigeration equipment, drilling equipment, transportation equipment, missile parts, armor, etc.
5754 aluminum plate sheetThe magnesium content of 5754 aluminum plate is higher than 5052 and lower than 5083. It has high fatigue relief, good corrosion resistance, good weldability, and is also a commonly used alloy aluminum plate grade in automobile manufacturing. 5754 aluminum plate is mainly used in automobile doors, engine hoods, molds, seals and other parts. It can also be used to manufacture pressure vessels, ships and transport tankers.
| Alloys | Thickness(mm) | Width(mm) | Length(mm) |
| 5052 | 2.0-8.0 | 1000-2000 | 2000-12000 |
| 5083 | 2.0-8.0 | 1000-2000 | 2000-12600 |
| 5754 | 2.0-8.0 | 1000-2000 | 2000-12000 |
| Alloys | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others(%) | |
| Single | Total | |||||||||
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | 0.05 | 0.15 | |
| 5083 | 0.2 | 0.35 | 0.15 | 0.20-0.50 | 4.0-5.0 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 |
| 5754 | 0.4 | 0.4 | 0.1 | 0.05 | 2.6-3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 |
| Alloys | Tempers | Tensile Strength Rm(MPa) | Yield Strength Rp. 02(MPa) | Elongation |
| 5052 | O/H111 | 170-215 | ≥65 | ≥16 |
| H112 | ≥190 | ≥80 | ≥7 | |
| 5083 | O/H111 | ≥275 | ≥125 | ≥15 |
| H112 | ≥275 | ≥125 | ≥12 | |
| 5754 | O/H111 | 190-240 | ≥80 | ≥16 |
| H112 | ≥190 | ≥80 | ≥7 |
Tags:5052 aluminum plate sheet,5083 aluminum plate sheet,5754 aluminum plate sheet
