Home > News & Blog > News > 5052 marine grade aluminum sheet for bottom shell

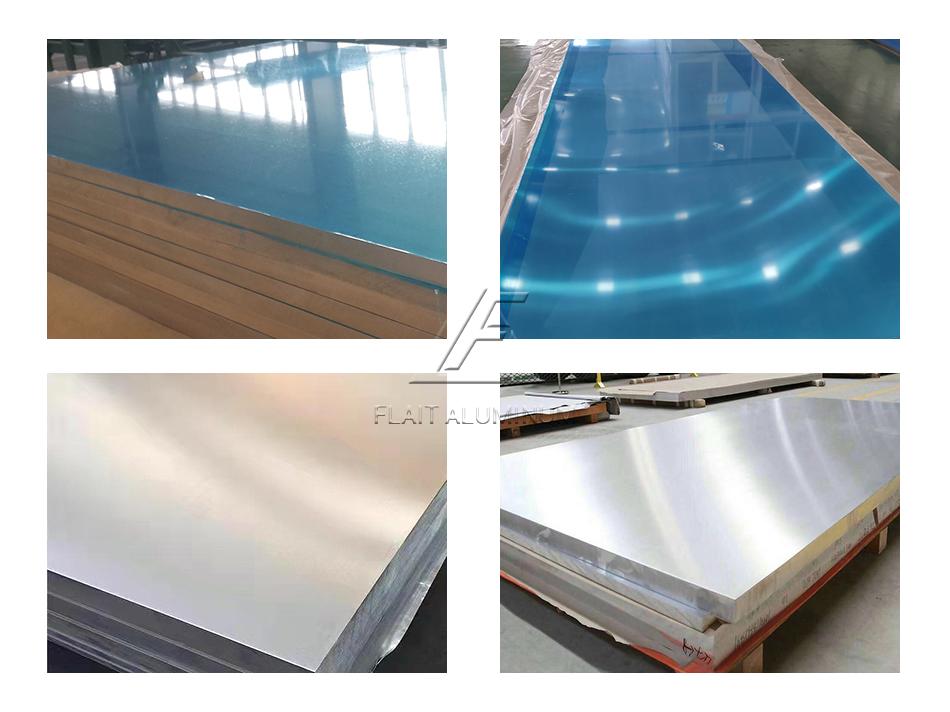

5052 marine grade aluminum sheet for bottom shell has undergone strict manufacturing and quality control and has high reliability and stability, ensuring the safe operation of marine equipment.
5052 marine grade aluminum sheet for bottom shell The use of aluminum alloy sheets can reduce manufacturing and maintenance costs and increase the durability and service life of equipment.
The lightweight of 5052 marine grade aluminum sheet for bottom shell is one of the important factors in improving ship performance. The use of lightweight aluminum alloy sheets can reduce the weight of the hull and increase speed and fuel efficiency.
5052 marine grade bottom shell aluminum plate is an aluminum alloy plate whose chemical composition includes elements such as aluminum, magnesium and silicon. This kind of plate has good processing performance and welding performance, as well as high strength and rigidity, which can meet the strict requirements of marine equipment.
| Alloy | 5052 |
| Temper | O,H111,H112,H24,H32,H34,H36 |
| Thickness (mm) | 1.50-120 |
| Width (mm) | ≤3100 |
| Length (mm) | 1000-16000 |
| Certificate | CCS,DNV,ABS |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.20-2.80 | 0.15-0.35 | – | 0.10 | – | – | Remainder |
Mechanical Properties
| Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2(MPa) | Elongation A(%) |
| 5052 | H32/H34 | 210-260 | ≥130 | ≥10 |
High strength and rigidityCorrosion resistanceEasy to process and weldLight weight
5052 marine grade bottom shell aluminum plate is widely used in shipbuilding, marine engineering, military ships and other fields. It is mainly used to manufacture key parts such as hull structures, cabins, and decks.
