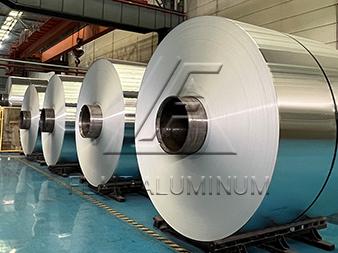

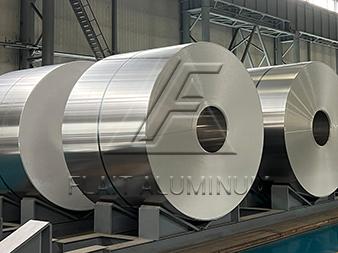

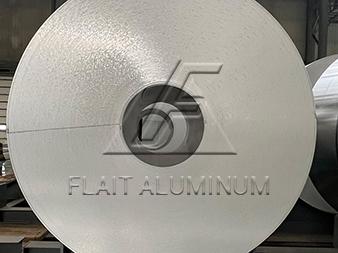

5083 Aluminum Coil

Alloy: 5083
Temper: O, H111, H112, H116, H321,etc.
Width(mm): 100-2650
Thickness(mm): 0.50-8.00
Length(mm): C

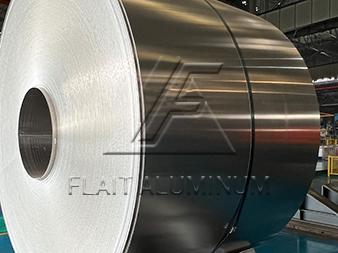

5083 Aluminum Coil

Quick Quote Get A Quote

The Introduction of 5083 Aluminum Coil

5083 Aluminum coil belongs to the AL-Mg series alloy, and the magnesium content is between 3-5%. 5083 Aluminum coil has good strength, good corrosion resistance, excellent weldability and good cold workability. The surface is beautiful after anodizing. Arc welding function is good. Its excellent corrosion resistance makes 5083 aluminum coil widely used in marine applications such as ships, automobiles, aircraft welding parts, subway light rail, etc., and pressure vessels that require strict fire protection (such as liquid tank cars, refrigerated trucks, refrigerated containers), refrigeration units, TV towers, drilling equipment, aluminum for transportation, etc.Click to Order

Flait Aluminum uses the finest raw material to improve the product quality, and we are certificated to CCS (China Classification Society) and DVN GL (Norske Veritas). The common tempers of 5083 aluminum coil are O, H32, H34, H112, H116, H321, etc., and we can cut to size according to customers’ need.

The Product Specification of 5083 Aluminum Coil

Alloy	5083 aluminum coil strip
Temper	F,O,111,H12,H14,H16,H18,H22,H24, H26,H28,H32,H34,H36,H38,etc.
Thickness(mm)	0.50-8.00
Width(mm)	100-2650
Length(mm)	C
ID	Ø505mm or customized
Package	Eye to sky or Eye to wall
Certificate	DNV,ABS,CCS,BV
Application	The outer plate and deck of the ship's side and bottom,tanker, oxygen generator tower, etc.
Sample	Available

Chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Al
5083	0.40	0.40	0.10	0.40-1.00	4.00-4.90	0.05-0.25	-	0.25	0.15	-	Remainder

Mechanical properties:

Alloy	Temper	Tensile strengthRm(Mpa)	Yield strengthRp0.2(MPa)	ElongationA(%)	Minimum Bending Radius of 180 Degree


5083	O/H111	≥275	≥125	≥16	-
	H116	≥305	≥215	≥10	-
	H32	305-385	≥215	≥12	-
	H112	≥275	≥125	≥10	-

The Product Features of 5083 Aluminum Coil

5083 Aluminum coil has low density, light weight, high tensile strength, high elongation, good corrosion resistance and durability.
5083 Aluminum coil has low density, light weight, high tensile strength, high elongation, good corrosion resistance and durability. It is used in vehicles to reduce the weight of the vehicle body, thereby reducing the inertia of the vehicle body and improving transportation efficiency. At the same time, it can also achieve the effect of energy saving and emission reduction.
The surface of 5083 aluminum coil has no oil spots, no waves, no scratches, no roll marks, neat trimming, and no burrs.

The Application of 5083 Aluminum Coil

5083 aluminum coil has a wide range of applications, mainly used in printing plate making, image plate making, shipbuilding, aluminum sheets for ships, auto parts, transportation vehicles, etc.

Related Products

5052 Aluminum Coil

5052 aluminum coil is an AL-Mg alloy with good corrosion resistance, good weldability, good cold workability, medium strength, good material formability, suitable for various sheet metal processing such as stamping and bending, and good anodic oxidation. 5052 alloy aluminum coil has high strength, especially high fatigue resistance, high plasticity and corrosion resistance, good weldability, poor machinability, and can be polished.

5086 Aluminum Coil

5086 aluminum coil belongs to the AL-Mg series alloy, which is a kind of anti-rust aluminum with high strength, low density, high tensile strength, high elongation, high corrosion resistance, good weldability and machinability, and is a good choice for marine vessels. , Offshore equipment and other important aluminum alloy products. The strength of 5086 aluminum coil is higher than that of 5052 aluminum alloy and slightly lower than that of 5083 aluminum alloy.

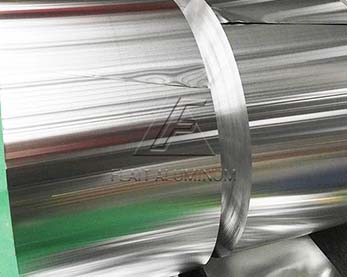

5754 Aluminum Coil

5754 aluminum coil is a typical alloy in the Al-Mg series alloy. It has the characteristics of medium strength, good corrosion resistance, weldability and easy processing and forming. 5754 aluminum plate is commonly used in the automobile manufacturing industry (car doors, molds, seals), canning industry (tank cars).

6061 Aluminum Coil

6061 aluminum coil belongs to Al-Mg-Si alloy, the main alloy elements are magnesium and silicon, with medium strength, good corrosion resistance, weldability, and good oxidation effect. 6061 aluminum coil refers to an aluminum plate with a thickness of 0.4mm-2.5mm. The aluminum coil has good oxidation effect, no deformation after processing, good quenching effect, good stability and many advantages. It is used in mobile phone shell materials, automobile wheels, trolley cases, 3C products and other fields.

5A03 Aluminum Sheet Plate

The 5A03 aluminum plate is an Al-Mg antirust alloy aluminum plate. Because the magnesium content of the 5A03 aluminum alloy is slightly higher than that of the 5754 aluminum alloy, the corrosion resistance and tensile strength of the 5A03 aluminum plate are higher than that of 5754. The silicon content in the 5A03 alloy is higher than that of 5754. Therefore, the welding performance is higher than that of 5754 aluminum plate, and it can be used for gas welding, argon arc welding, spot welding and seam welding.

5005 Aluminum Sheet Plate

5005 aluminum sheet is an aluminum-magnesium alloy with medium strength and good corrosion resistance. It is widely used in cooking utensils, instrument panels, shells and architectural decorations, interior and exterior materials for building materials, and interior materials for vehicles. When doing anodic oxidation treatment, the anodized film of 5005 alloy is brighter than the oxide film on 3003 alloy, so 5005 aluminum plate is often used in many curtain wall decorations.

5086 Aluminum Sheet Plate

5086 aluminum plate belongs to the AL-Mg series alloy, is a kind of anti-rust aluminum, has high strength, low density, high tensile strength, high elongation, high corrosion resistance, good weldability and machinability, 5086 aluminum plate is a marine important aluminum alloy products in the fields of ships and offshore equipment.

5454 Aluminum Sheet Plate

5454 aluminum plate is an aluminum-magnesium alloy, the main alloying element is magnesium, with a content of 2.4~3.0%. It is a typical anti-rust aluminum plate. Its strength is about 20% higher than that of 5052 alloy. It can adapt to harsh corrosive environments, with high strength and corrosion resistance. Good weldability and general formability. 5454 aluminum sheet is widely used in automobiles, aluminum tank truck barrels and other fields.

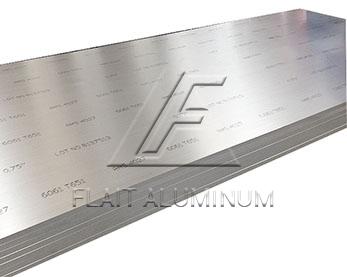

6061 Aluminum Sheet Plate

6061 aluminum plate belongs to Al-Mg-Si alloy, the main alloy elements are magnesium and silicon, with medium strength, good corrosion resistance, weldability, and good oxidation effect. In particular, it has no tendency to stress corrosion cracking, has excellent weldability, good corrosion resistance and cold workability, and is a promising alloy with a wide range of applications. 6061 aluminum plate can be anodized and colored, and can also be painted with enamel, which is suitable for building decoration materials. It contains a small amount of Cu, so its strength is higher than that of 6063, but its quenching sensitivity is also higher than that of 6063. Air quenching cannot be achieved after extrusion, and it needs re-solution treatment and quenching aging to obtain higher strength.

6101 Aluminum Sheet Plate

6101 aluminum alloy is American wrought aluminum and aluminum alloy. 6101 aluminum plate can be used for high-strength conductive materials. 55% IACS guarantee, good corrosion resistance and weldability, used for processing high-strength bus conductors. 6101 aluminum sheet standards: American Aluminum Association (AA) 6101, USN A96101, ISO R209 E-AlMgSi; China GB 6101; France NF A-GS/L; UK BS 6101A (91E); Germany DIN E-AlMgSi0.5/3.2307.

6082 Aluminum Sheet Plate

The 6082 aluminum plate, like the 6061 aluminum plate, contains Mg, Si, Cu and other metal elements, has good formability, weldability, machinability and corrosion resistance, has medium strength, and can still maintain good operability after annealing.

6063 Aluminum Sheet Plate

6063 aluminum plate belongs to the Al-Mg-Si series high plasticity alloy, which is an alloy that can be strengthened by heat treatment. Top coating, excellent anodizing effect. The tensile strength and yield strength of 6063 aluminum alloy plate at different temperatures are good, and the elongation is relatively large. Excellent weldability, gas welding, arc welding, contact spot welding and wire welding are all available, and it has good brazeability.

5754 Aluminum Sheet Plate

5754 aluminum plate is a typical alloy in the Al-Mg series alloy, which has the characteristics of medium strength, good corrosion resistance, weldability and easy processing and forming. 5754 aluminum plate is commonly used in the automobile manufacturing industry (car doors, molds, seals), and the canning industry. 5754 aluminum plate can be made into patterned aluminum plate, embossed aluminum plate, and medium-thick aluminum plate.

6005 Aluminum Sheet Plate

6005 aluminum plate belongs to Al-Mg-Si alloy, which has medium strength, good plasticity, corrosion resistance, weldability and formability, and excellent comprehensive performance. 6005 aluminum plate is a kind of anti-rust aluminum widely used. This alloy has a wide range of applications, especially in the construction industry. It is a promising alloy. It cannot be strengthened by heat treatment and can be polished.

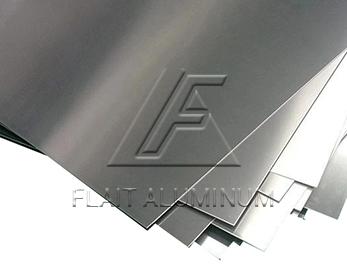

5252 Aluminum Sheet Plate

The 5252 aluminum plate belongs to the aluminum-magnesium alloy aluminum plate. The main element is aluminum, and a small amount of magnesium or other metal materials are added to strengthen its hardness. The aluminum alloy with Mg as the main additive element is also called anti-rust aluminum alloy because of its good corrosion resistance. The 5252 aluminum plate has good oxidation coloring effect, better metal texture and metal hardness, wear resistance and corrosion resistance, and long service life.

5182 Aluminum Sheet Plate

5182 aluminum plate belongs to Al-Mg series alloy, which has good corrosion resistance, excellent weldability, good cold workability, and medium strength. It is widely used in aluminum for automobile lightweight. The performance is similar to 5A02, but because the magnesium content is slightly higher than 5A02, and a small amount of silicon is added, the weldability is better than 5A02. The welding performance of 5182 aluminum plate is very good with gas welding, argon arc welding, spot welding and seam welding.

5052 Aluminum Sheet Plate

5052 aluminum plate is an AL-Mg alloy with good corrosion resistance, good weldability, good cold workability, medium strength, good material formability, suitable for various stamping, bending and other sheet metal processing, and good anodic oxidation. It can be oxidized and colored into various bright and bright colors, and is used in mold manufacturing, production of machined parts, etc.

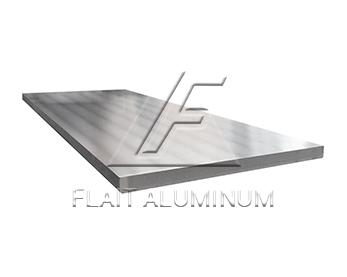

5083 Aluminum Sheet Plate
