Home > Product > Special Aluminum > 5083 Aluminum Plate Sheet for Tank Truck
For more detailed information including pricing, customization and shipping.

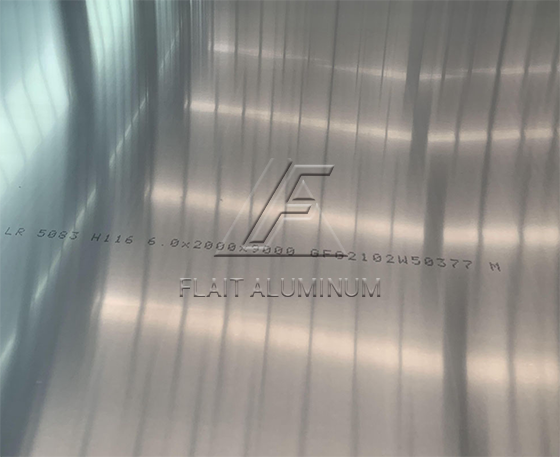

5083 Aluminum sheet plate belongs to the Al-Mg series alloy, the main element is magnesium, and the Mg content can reach between 4.0% and 4.9%; is a kind of rust-proof aluminum with light weight, high strength, good corrosion resistance, good welding performance and good formability, has good application effects in the field of tank truck manufacturing. The two commonly used tempers for 5083 aluminum alloy plates in tanker body applications are H111 and O/HO.
5083-H111 aluminum plate sheet for tank body and wave shields
5083-H111 aluminum sheet plate is a strain-hardened and partially annealed temper, offers high strength and excellent resistance to corrosion, making it suitable for the demanding conditions encountered in tanker bodies. 5083-H111 aluminum plate provides good formability and retains its mechanical properties even after welding, ensures the tankers maintains its strength and integrity during the transportation and storage of various liquids and gases. This makes it ideal for fabricating complex shapes and structures required in tanker bodies.
5083-O aluminum plate sheet for tank lid, bulkhead and tank head
5083-O aluminum plate sheet is softer than 5083-H111, so, the tank lid, bulkhead and the tank head of the tank cylinder is made of 5083-O aluminum plate sheet, because 5083-O aluminum plate offers excellent formability and ease of fabrication, making it suitable for applications that require intricate shapes and bending.
In addition, at the temperature within 135℃, the mechanical properties of 5083-O/H111 Performance is better than 5454-O/H111. Therefore, according to the "Cement Quality Management Regulations", when the temperature of the bulk material to be transported is not higher than 135°C, such as cement, the aluminum alloy tanker/powder tanker can choose 5083 aluminum plate as the raw material.
| Product | 5083 aluminum sheet plate |
| Tempers | O,H111,H112,H114,H116,H32,H321,etc. |
| Thickness(mm) | 4.00 – 8.00 |
| Width(mm) | 1500-2650 |
| Length(mm) | 500-16000 |

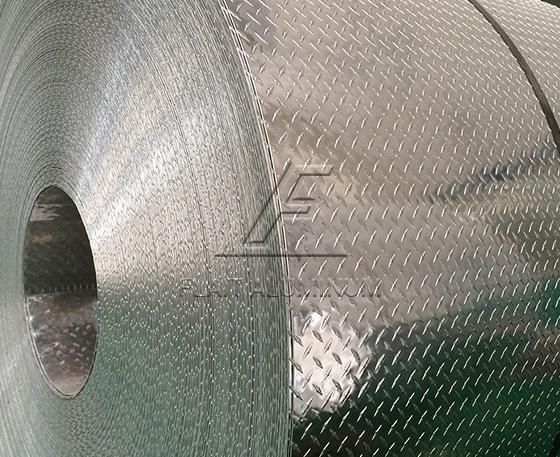

| Surface | Mill finish, chequer aluminum plate |
| Certification | DNV, GL, ABS, CCS, BV, LR |
| Sample | Available |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 5083 | 0.40 | 0.40 | 0.10 | 0.40-1.00 | 4.00-4.90 | 0.05-0.25 | 0.25 | 0.15 | Remainder |
Mechanical properties
| Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2(MPa) | Elongation | Minimum Bending Radius of 180 Degree | Standard |
| 5083 | O/H111 | 290-370 | ≥145 | ≥17 | 1.5T | EN14286, ASTM B209 |
| H116 | 305-370 | ≥215 | ≥12 | 3T | ||
| H32 | 305-385 | ≥215 | ≥12 | 3T | ||
| H321 | 305-370 | ≥220 | ≥12 | 3T |
Tolerances
| Thickness (mm) | Width (mm) | |||
| ≤1250 | 1250-1600 | 1600-2000 | 2000-2600 | |
| 3.00-6.00 | 0.32 | 0.32 | 0.4 | 0.45 |
| 6.00-8.00 | 0.38 | 0.46 | 0.5 | 0.6 |
| 8.00-12.00 | 0.45 | 0.56 | 0.65 | 0.8 |
◆ Lightweight, energy saving and emission reduction.
5083 aluminum plate replaces traditional steel as the tank material, which can reduce the weight of the vehicle by 30% to 40%. Moreover, as the weight of the vehicle body is reduced, fuel consumption is also significantly reduced, and exhaust emissions are reduced.
◆ High strength and not easy to deform.
Compared with traditional steel, 5083 aluminum plate has higher strength and good toughness. It can maintain the integrity and stability of the car body while withstanding high pressure and impact, improve transportation safety.
◆ Excellent corrosion resistance, easy processability and long service life.
Compared with traditional steel, 5083 aluminum plate has better corrosion resistance, which can effectively prevent the car body from being corroded during transportation and extend the service life of the tranker body. Also, 5083 aluminum sheet is also very easy to process and can be processed into tank truck body parts of various shapes and sizes through stamping, welding and other processes to meet the needs of different application scenarios.
◆ Good thermal conductivity and fatigue resistance, high safety.
Compared with traditional steel, 5083 aluminum plate has better thermal conductivity, which can effectively reduce the temperature inside the vehicle body and improve transportation efficiency. Also, the fatigue resistance of 5083 aluminum sheet is also very good, which can ensure that the tanker body will not deform or crack during use, ensuring the safety and reliability of the tankers.
◆ Environmentally friendly, high recycling rate.
Carbon steel materials cannot be recycled and can only be treated as scrap iron, while aluminum alloy tanks can be recycled and reused, the recycling price is also very high.
5083 aluminum sheet plate is commonly used in tank truck (fuel tanker, air reservoir, powder tanker, tankers cylinder, LNG storage tank, tanker trailer, fuel tanker trailer, liquid tank trucks, refrigerated trucks, refrigerated containers), ships, vehicle materials, automobile, aircraft plate weldments, pressure vessels, refrigeration equipment, transportation equipment, etc.
