Home > Product > Special Aluminum > 5083 Aluminum Sheet Plate for Automobile
For more detailed information including pricing, customization and shipping.

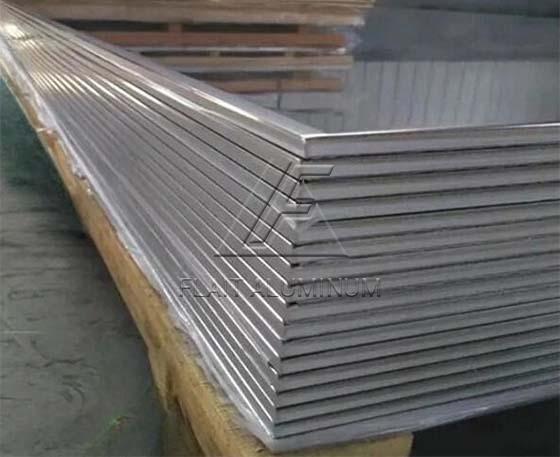

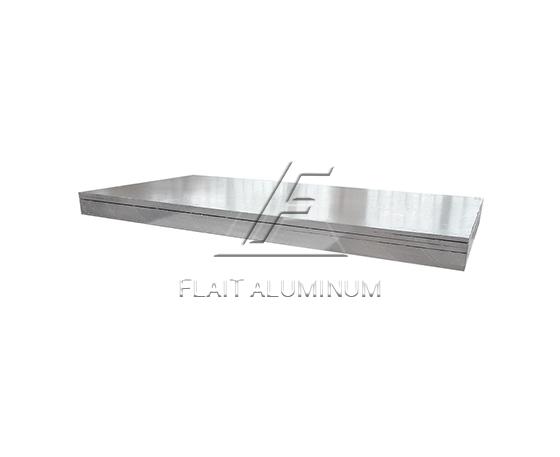

5083 automotive aluminum shee plate is one of the typical applications of 5083 aluminum alloy. Its material properties are high strength (higher than 5182 aluminum plate), light weight, excellent corrosion resistance, outstanding weldability and good formability. The common states of 5083 automotive aluminum sheet include O state (complete annealing state), H111 (mild work hardening state) and H32 (1/4 hardening state). Its mechanical properties improve evenly with decreasing temperature, and its fracture toughness also improves accordingly. It is a good automotive cover alloy, especially suitable for internal and external welded sheet metal structures such as commercial vehicles, various special vehicles, and semi-trailers.
| Alloy | 5083 aluminum sheet plate |
| Temper | O,H111,H32 |
| Thickness(mm) | 4.00 – 8.00 |
| Width(mm) | 1500 - 2650 |
| Length(mm) | 2000 - 16000 |
| Standard | ASTM B209/EN 485/GB/T 33227-2016/JIS H4000 |
| Application | Body structure (body frame, doors, trunk lid, hood), wheels, suspension components, fuel tanks, exhaust systems, interior components, chassis components. |
Chemical Composition of 5083 Aluminum Sheet Plate for Automobile
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.00 | 4.00-4.90 | 0.05-0.25 | 0.25 | 0.15 | Remainder |
Mechanical properties of 5083 Aluminum Sheet Plate for Automobile
| Alloy | 5083 | 5083 |
| Temper | O,H111 | H32 |
| Tensile Strength Rm(Mpa) | 270-345 | 305-380 |
| Yield Strength Rp0.2(Mpa) | ≥115 | ≥215 |
| Elongation A50(%) | ≥16 | ≥6 |
◆ High strength: 5083 aluminum alloy has the highest strength among non-heat-treated alloys and has excellent mechanical properties.
◆ Excellent corrosion resistance: It has strong corrosion resistance to seawater and industrial chemical environments.
◆ Excellent weldability: The strength of the welded joint is comparable to that of the annealed base material, and still maintains excellent strength.
◆ Lightweight: Low density helps to reduce the weight of the vehicle body and improve fuel efficiency.
◆ Good formability: It has good ductility and formability, suitable for manufacturing parts with complex shapes.
5083 aluminum plate is used for automobile body: its high strength and good corrosion resistance make it an ideal material for manufacturing body covering plates, including body outer and inner plates, car roof, which can improve vehicle safety while meeting the lightweight requirements of automobiles.5083 aluminum plate is used for engine guard plate: its lightness and superior strength can effectively protect the engine from external impact and corrosion.5083 aluminum pattern plate is used for automobile pedals: the high strength and good anti-skid performance of 5083 pattern aluminum plate make it an ideal material for automobile pedals, which is not only safe and reliable, but also durable, usually used in SUVs, MPVs, RVs and passenger cars.5083 aluminum plate is used for automobile fuel tanks: the fuel tank made of 5083 aluminum plate is not only light, but also corrosion-resistant, and can be used for a long time in harsh environments.5083 aluminum plate is used for body structural parts: it is used to manufacture lightweight body structural parts, such as reinforcements.
