5086 O Aluminum plate for ship bulkhead

2023-07-13 09:46:10

5086 O aluminum plate for ship bulkhead is light in weight and good in corrosion resistance, it is one of the commonly used materials in the shipbuilding industry. The bulkhead of a ship needs to be strong enough to support the structure, while also considering the need for light weight and energy saving. Aluminum plates can meet these requirements, so they are widely used in ship bulkheads in shipbuilding.Click to Order

5086 aluminum plate for marine bulkheads can be used on all types of vessels including merchant vessels, military vessels and personal recreational vessels. They are commonly used as covering materials for ship bulkheads to isolate the environment inside and outside the cargo hold and to provide strength and stability to the cargo hold structure.

The main advantages of 5086 O aluminum plates for ship bulkheads include: light weight, high strength, strong corrosion resistance, easy processing and repair, and good impact resistance. In addition, the aluminum plate can also provide good heat insulation and sound insulation performance, increasing the comfort of the cabin.

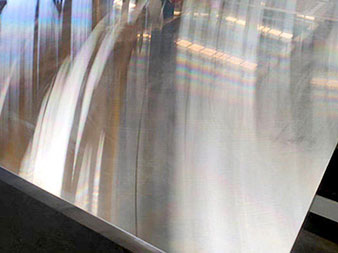

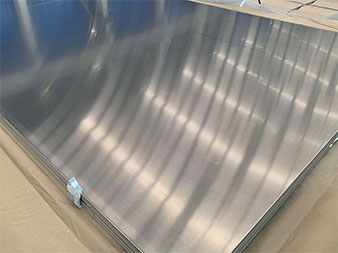

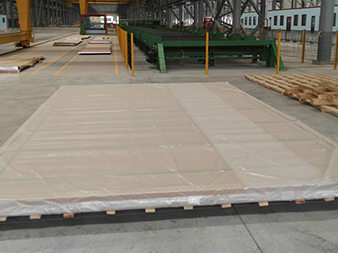

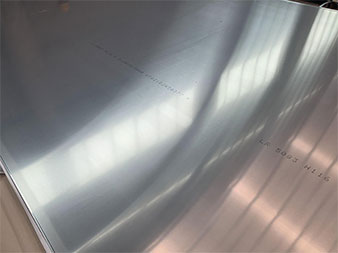

5086 O Aluminum plate for ship bulkhead 5086 O Aluminum plate for ship bulkhead 5086 O Aluminum plate for ship bulkhead5086 O Aluminum plate for ship bulkhead

Features of 5086 O Aluminum Plate for Ship Bulkhead

  • Corrosion Resistance: 5086 O aluminum sheet exhibits excellent resistance to seawater and marine environments, making it highly suitable for shipbuilding applications. It has superior resistance to stress-corrosion cracking.
  • High Strength: Despite its soft temper, 5086 O aluminum sheet has excellent tensile strength and is structurally strong.
  • Formability: It has good formability, allowing for easy shaping and bending without cracking.
  • Weldability: 5086 O aluminum sheet is highly weldable using various welding methods, making it easy to join with other shipbuilding components.



Specification of 5086 O Aluminum Plate for Ship Bulkhead

Alloy 5086
Temper O,H111,H112,H116,H321
Thickness (mm) 1.50-120
Width (mm) ≤3100
Length (mm) 1000-16000
Certificate
DNV/ABS/NK/CCS/LR

Mechanical Properties

Alloy 5086
Temper
O,H111,H112,H116,H321
Tensile strength Rm (Mpa)
204-305
Yield strength Rp0.2(MPa) ≥95
Elongation A(%) 16
Hardness lower hardness

Chemical Composition

Al (%) Mg (%) Mn (%) Cr (%) Fe (%) Si (%) Cu (%) Zn (%) Ti (%)
92.5 – 95.4 4.0 – 4.9 0.20 – 0.7 0.25 0.5 0.4 0.10 0.25 0.15



Application of 5086 O Aluminum Plate for Ship Bulkhead

  • Hull Construction: 5086 O aluminum sheet is commonly used for constructing ship hulls due to its exceptional corrosion resistance and strength.
  • Decks and Bulkheads: It is also suitable for fabricating decks, bulkheads, and other structures in ships where corrosion resistance is paramount.
  • Superstructures: The alloy can be used for the construction of superstructures, providing lightweight and durable components.
  • Tanks and Containers: 5086 O aluminum sheet is often used to manufacture tanks and containers on ships due to its excellent corrosion resistance.



Original SourceMarine Grade Aluminum Sheet Plate

Tags: 5086 aluminum plate , 5086 aluminum sheet
