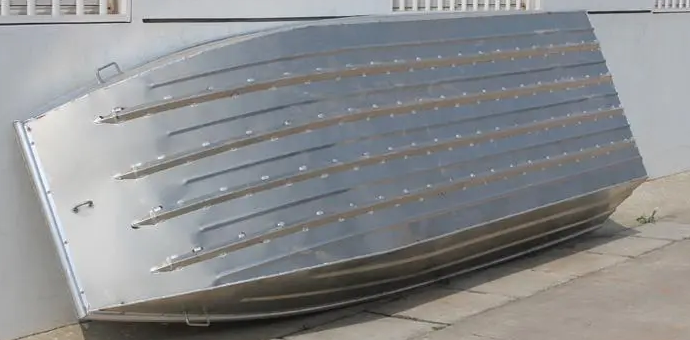

5086 Medium thick aluminum plate belongs to the aluminum-magnesium alloy and is a kind of rust-proof aluminum. Due to the complexity and variability of the marine environment, countermeasures need to be taken in ship design to improve ship performance and safety. The 5086 Medium thick aluminum plate produced by FLAIT ALUMINUM has high corrosion resistance, good weldability and medium strength. Therefore suitable for use as bilge hull. 5086 Medium thick aluminum plate for ship bottom shell can protect the ship from corrosion, reduce the weight of the hull, thereby reducing the single engine capacity, increasing speed, reducing fuel consumption, and saving fuel.
Alloy | 5086 |
Temper | O,H111,H112,H116,H321 |
Thickness (mm) | 1.50-120 |
Width (mm) | ≤3100 |
Length (mm) | 1000-16000 |
Package | Export packaging (protective film, interleaved paper) |
Certificate | CCS, DNV, ABS, BV |
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | AL |
5086 | 0.40 | 0.50 | 0.10 | 0.20-0.70 | 3.50-4.50 | 0.05-0.25 | – | 0.25 | 0.15 | – | Remainder |
Mechanical Properties
Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2(MPa) | Elongation A(%) |
5086 | O/H111 | 204-305 | ≥95 | ≥16 |
H112 | ≥250 | ≥125 | ≥8 | |
H116 | ≥275 | ≥195 | ≥10 |
