Automotive lightweighting is the development trend of the automotive industry. As a lightweight, high-strength material, aluminum plates are widely used in automotive manufacturing. 5754 aluminum plate, as an aluminum plate with excellent performance, is gradually known and recognized by people.
5754 aluminum plate is a non-heat-treated aluminum-magnesium alloy and a type of rust-proof aluminum plate. The properties of 5754 aluminum show excellent corrosion resistance, good weldability and excellent machining formability. It also has high fatigue strength and crack propagation resistance.What is particularly important to know is that the anodizing effect of 5754 aluminum plate is obvious.Click to Order

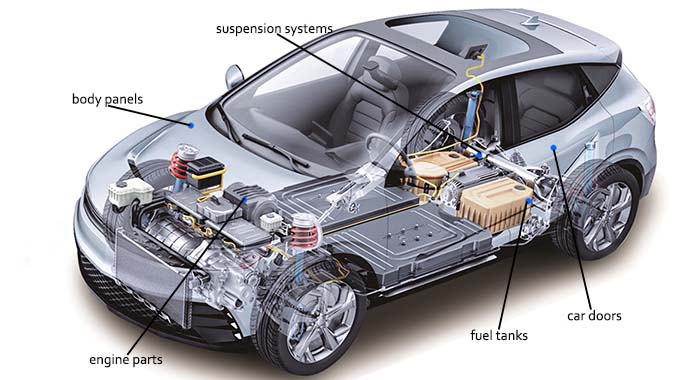

In automotive manufacturing, 5754 automotive aluminum sheets are mainly used to manufacture body panels, engine parts, suspension systems and other components, and can also be used in the manufacture of car doors and automotive fuel tanks.
5754 automotive aluminum sheet plate for body panels: 5754 automotive aluminum plate has high strength and light weight, meeting the lightweight requirements of automotives. At the same time, its corrosion resistance can protect the body panels in harsh environments and extend the service life of the vehicle.
5754 automotive aluminum sheet plate for engine parts: 5754 automotive aluminum sheet has good high temperature resistance and fatigue resistance, and is suitable for manufacturing automotive engine parts, such as cylinder heads, cylinder blocks, etc. It can also be used as an engine bottom guard to protect the engine from damage.
5754 automotive aluminum sheet plate for suspension systems: 5754 automotive aluminum plate has high hardness and strength and can be used to manufacture automotive suspension systems. Reduce vehicle weight while improving handling. Excellent corrosion resistance protects suspension systems from harsh environments.
5754 automotive aluminum sheet plate for car doors: 5754 automotive aluminum sheet has good fatigue resistance, corrosion resistance and processing performance. Suitable for the manufacture of automotive doors.
5754 automotive aluminum sheet plate for fuel tanks: 5754 automotive aluminum plate, 5052 aluminum plate, and 3003 aluminum plate are common fuel tank aluminum alloys. 5754 automotive aluminum sheet has the best performance among them and can effectively extend the service life of automotive fuel tanks and replace traditional iron fuel tanks.
5754 automotive aluminum sheet plate for tank trucks: In addition to being used as automotive aluminum plate, 5754 aluminum plate can also be used to make the body of oil tank trucks, which not only meets the need for lightweighting, but also improves safety.
| Alloy | 5754 automotive aluminum sheet plate |
| Temper | O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H116,H321,etc. |
| Thickness(mm) | 0.10-600;customizable |
| Width(mm) | 100-2650;customizable |
| Length(mm) | 500-16000;customizable |
| Surface treatment | Rolled, Checkered aluminum plate,Anodized |
| Certificate | CCS, DNV, ABS, BV |
| Application | Automotive stamping parts, pressure vessels, ship structures, transport tanks, car doors, battery covers, molds, seals, welding structures, etc. |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.60-3.60 | 0.3 | 0.2 | 0.15 | Remainder |
| Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2(MPa) | Elongation A(%) | Hardness HBWα |
| 5754 | O/H111 | 190-240 | ≥80 | ≥12 | 38 |
| H32 | 220-270 | ≥130 | ≥11 | – |
