8011 aluminum foil for Heat Sealing has very good heat sealing performance. It can generate high temperature in an instant and melt the aluminum foil on the bottle mouth that needs to be sealed to achieve a plastic sealing effect. It has strong barrier properties and can effectively prevent oxidation, water and moisture, and protect food from rotting. 8011 aluminum foil has high temperature resistance, low temperature resistance, oil resistance, and good fragrance retention properties, which allows it to maintain its original quality and fragrance during the heat sealing process. 8011 aluminum foil has strong mechanical properties, high blast resistance, puncture resistance and tear resistance, which allows it to withstand a certain amount of pressure and impact during the heat sealing process.
The most important thing is that the thickness of the 8011 aluminum foil we produce for heat sealing is usually 0.006-0.2mm. The surface should be flat and smooth, without wrinkles, burrs, oil stains, spots and other defects. It should be non-toxic and tasteless, and comply with food hygiene standards. Use Very safe to get up. 8011 aluminum foil is an excellent heat sealing material.
Alloy | 8011 |
Temper | O/HO |
Thickness (mm) | 0.07-0.10 (30-60mic, commonly used 38mic) |
Width (mm) | 100-1600 |
Length (mm) | C |
Coil ID | 76mm, 152mm |
Surface | One side bright, one side matt, or both sides bright |
Packaging | Plastic film+free fumigation wooden box+plastic tape |
Certification | SGS/ISO/CFDA |

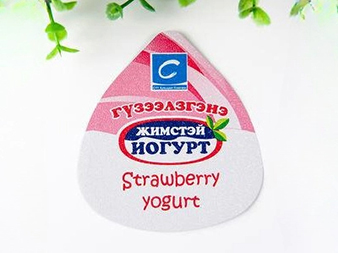

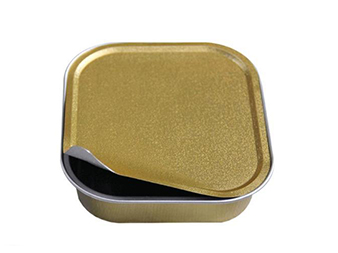

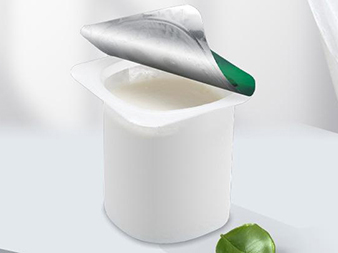

Application | Food contact lids for packing containers such as yogurt, milk, cheese, ice cream, water, juice, beverage, coffee, tea, food, noodles, cosmetic, seasoning ,K-cup , coffee capsule etc. |
Lid structure | AL+ Heat sealing lacquer for PS/PP/PE/PET/Paper cups; AL+Heat sealing film (easy to peel off) for PS/PP/PE/PET/Paper cups; AL+Heat sealing film (uneasy to peel off) for PP/PE/PET/Paper cups; PET+Lacquer for PS/PP/PE/PET/Paper cups; PET+AL+film/lacquer for PS/PP/PE/PET/Paper cups; |
Heat sealing temperature | 180℃-250℃, depend on the material of the cup and the environment |
Chemical Composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
8011 | 0.50-0.90 | 0.60-1.00 | 0.1 | 0.2 | 0.05 | 0.05 | 0.1 | 0.08 | Remainder |
Mechanical Properties
Alloy | Temper | Tensile strength Rm/MPa | Elongation A50mm (%) ≥ | Elongation A100mm (%) ≥ |
8011 | O | 50-120 | 13-15 | 0.5-4 |
H22 | 90-150 | 5-6 | 1.0-2.0 | |
H24 | 120-170 | 2-5 | – | |
H26 | 140-190 | 1-2 | – |
8011 aluminum foil is widely used in heat sealing of various bottle caps due to its excellent mechanical properties and heat sealing performance. Such as liquor bottle caps, red wine bottle caps, cosmetic bottle caps, milk powder caps, medical caps, beverage caps, yogurt caps, etc.
