8011 H18 aluminum foil:PTP pharmaceutical aluminum foil substrate

2024-10-16 16:00:20

8011 H18 aluminum foil is an aluminum foil material commonly used in pharmaceutical packaging, especially in PTP (Press Through Packaging) pharmaceutical aluminum foil substrates. Almost all products in modern packaging that require opaque or high-barrier composite materials use aluminum foil as a barrier layer. This is because aluminum foil has a highly dense metal crystal structure that can block gas, so it is widely used. The aluminum foil used in blister packaging is a sealing material sealed on the hard sheet of pharmaceutical plastic polyvinyl chloride (PVC), so it is also called a cover material.

8011 H18 aluminum foil belongs to hard aluminum foil. The basic structure includes a protective layer, an aluminum foil substrate, a heat-sealing layer, an adhesive and other composite materials. These layers ensure its good airtightness and sealing performance. The thickness of 8011 aluminum foil produced by FLAIT ALUMINUM ranges from 0.016 to 0.5 mm, and the width can reach 100 to 1600 mm, which is suitable for different packaging needs.

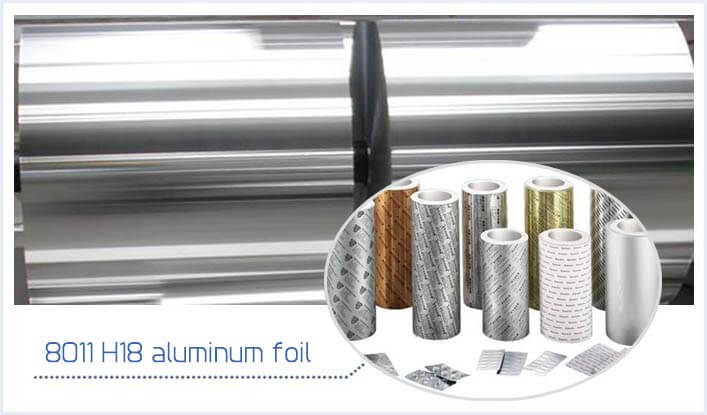

8011 H18 aluminum foil

Features of 8011 H18 pharmaceutical aluminum foil substrate

  • ◆High cupping value: ensures good shape and strength during pressing.
  • ◆High heat seal strength: can effectively resist the impact of the external environment on the packaging and keep the internal contents fresh.
  • ◆No pinholes: avoids gas and moisture penetration caused by holes, further improving the sealing.
  • ◆Widely applicable standards: complies with various international standards such as national standards, American standards, and European standards, making it competitive in the global market.



Specifications of 8011 H18 pharmaceutical aluminum foil substrate

Alloy 8011 aluminum foil
Temper O,H14,H16,H18
Thickness(mm) 0.016-0.50
Width(mm) 100-1600
Length(mm) C
Standard ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
Application Capsule plates, candy blister packaging plates, tablet plates, etc.



8011 H18 aluminum foil has a good development prospect in the pharmaceutical packaging market. It is expected that 60% to 70% of tablets and capsules will be packaged in blister form in the future. With the increasing demand for high barrier materials, 8011 H18 aluminum foil will continue to be one of the important packaging materials.



Original Source:Pharmaceutical Aluminum Foil

Tags:8011 aluminum foil
