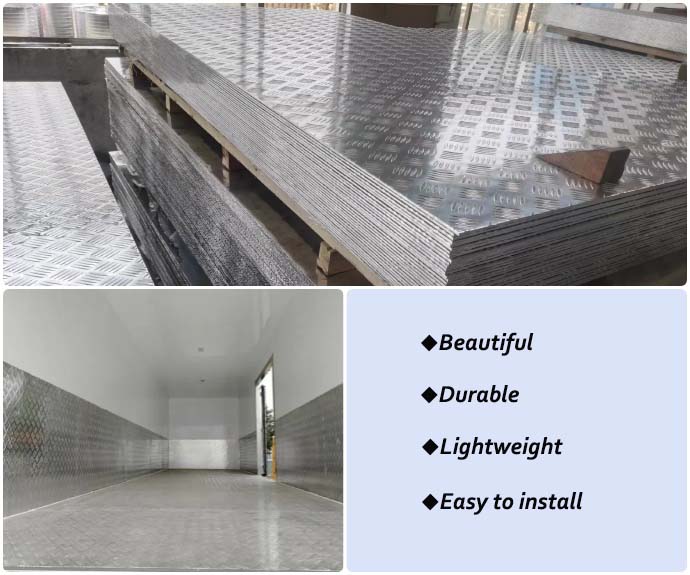

AL3003 anti-skid and anti-rust checkered aluminum plate for truck compartment cold storage floor

The checkered aluminum plate for truck compartments is a new type of material that combines the lightweight, corrosion-resistant, easy-to-process characteristics of aluminum plates with a unique pattern design, making the appearance of the truck compartment more beautiful and elegant, while also improving the durability and anti-slip properties of the compartment. 3003 anti-skid checkered aluminum plates are aluminum-manganese alloys/rust-proof aluminum alloys, has good anti-skid and anti-rust properties. The strength of 3003 patterned aluminum plates is higher than 1060 patterned aluminum plates. They are usually used in truck compartments, cold storages, floors, ramps, stairs, non-slip floors, decorative panels, etc.

Specification of AL3003 anti-skid and anti-rust checkered aluminum plate for truck compartment cold storage floor

Alloy: 1060, 3003, 5052

Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H111, H112, H114

Thickness (mm): 1.20-8.00

Width (mm): 100-1850

Length (mm): 500-16000

ID: 508mm for coil

Surface: Bright finish, Mill finish

Bar difference: 1 bar (Diamond/Pointer), 2 bar, 3 bar, big/small 5 bar

Standards: EN-1386, ASTM, GBT, JIS

Package: Export packaging (protective film, interleaved paper)

Common order size: 4x8ft, 5x10ft, 1200x2400mm, 1500x3000mm, 2000x4000mm

Sample: FREE

3003 1060 5052 anti-slip pattern aluminum plate can be divided into one-bar, two-bars, three-bars, five-bars pattern plate according to the pattern model. Users can choose the appropriate product according to their needs.

1. Selection of anti-skid aluminum plates:anti-skid aluminum plates for cold storage, carriages and ship bilges, usually 3003-H24 anti-skid patterned aluminum plates, 3.0mm thickness. This series of aluminum plates is used in places where it is not suspended and not load-bearing; so there is no need to choose high-thickness, high-hardness anti-slip aluminum plates.

2. Special places:In places that need to be suspended, have high corrosion or are prone to rust and corrosion, it is recommended to use 5052 or 6061 anti-rust and anti-slip checkered aluminum plates. This series of anti-slip aluminum plates have excellent anti-rust and corrosion resistance.

3. For places that are suspended in the air and require workers to step on: it is recommended to use alloy series with a thickness of not less than 6.0mm. Anti-skid aluminum plates of this series and thickness can ensure the safety of workers to a high extent and at the same time ensure the service life of the anti-skid aluminum plates.

Features of AL3003 anti-skid and anti-rust checkered aluminum plate for truck compartment cold storage floor

1. Beautiful and elegant

The 3003 anti-skid and anti-rust patterned aluminum plate for truck compartments adopts a unique pattern design, which makes the appearance of the compartment more beautiful and generous, and improves the overall grade and visual effect of the vehicle. This kind of aluminum plate not only has a beautiful appearance, but also comes in a variety of pattern. Aluminum plates of different patterns can be customized according to customer needs to meet the individual needs of different customers.

2. Strong durability

The 3003 anti-skid and anti-rust pattern aluminum plate for truck compartments is made of high-quality aluminum and has excellent corrosion resistance and oxidation resistance, can maintain its appearance and stable performance for a long time in harsh environments. In addition, the surface of the aluminum plate adopts a special treatment process and is anti-slip, wear-resistant, and easy to clean, making the carriage easier to maintain and maintain.

3. Lightweight and easy to install

3003 anti-skid and anti-rust patterned aluminum plates for truck compartments are lightweight and lighter than traditional steel plates and other materials, which can reduce the overall weight of the vehicle and improve transportation efficiency. At the same time, the installation of aluminum plates is also very convenient, can be installed by welding, riveting and other methods. The installation process is simple and fast, which greatly improves the construction efficiency.

Advantages of AL3003 anti-skid and anti-rust checkered aluminum plate for truck compartment cold storage floor

1. Energy saving and environmental protection

The 3003 pattern aluminum plate for truck compartments is made of aluminum. Compared with traditional steel plates and other materials, it is more environmentally friendly and will not produce rust and pollution, and meets the environmental protection requirements of modern society. In addition, aluminum has a high recycling rate, which can effectively reduce resource waste and environmental pollution.

2. Reduce costs

The 3003 pattern aluminum plate used in truck compartments has a longer service life than traditional steel plates and other materials, and can reduce the frequency of maintenance and replacement, thereby reducing the cost of vehicle use. At the same time, the easy installation of aluminum plates can also reduce construction time and labor costs, further reducing vehicle operating costs.

3. Improve transportation efficiency

The 3003 pattern aluminum plate used in truck compartments is lightweight, which can reduce the overall weight of the vehicle and improve transportation efficiency. In addition, the anti-skid and wear-resistant characteristics of aluminum plates can also ensure the stability and safety of goods during transportation, further improving transportation efficiency.

Applications of AL3003 anti-skid and anti-rust checkered aluminum plate for truck compartment cold storage floor

3003 anti-skid and anti-rust pattern aluminum plate for truck compartments is suitable for the manufacture and modification of various truck compartments, especially in scenarios where the aesthetics and durability of the compartment need to be improved. For example, for long-distance transport trucks, the appearance of the carriage needs to withstand the test of various environments such as wind, rain, dust erosion, etc. The use of patterned aluminum plates for truck carriages can effectively protect the appearance and performance of the carriage and extend the service life of the carriage. At the same time, for trucks that need to load slippery goods, the anti-skid properties of aluminum plates can also ensure the stability and safety of the goods.
