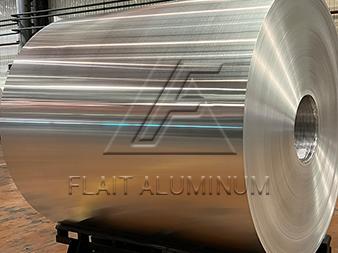

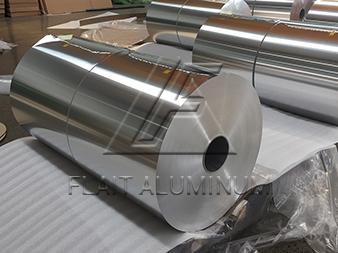

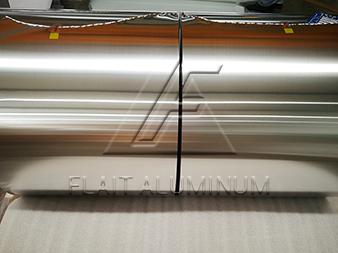

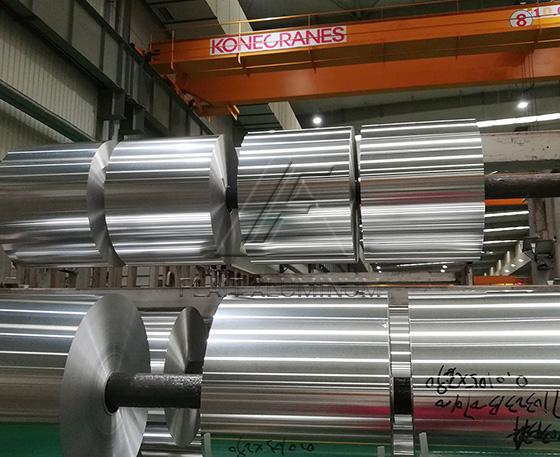

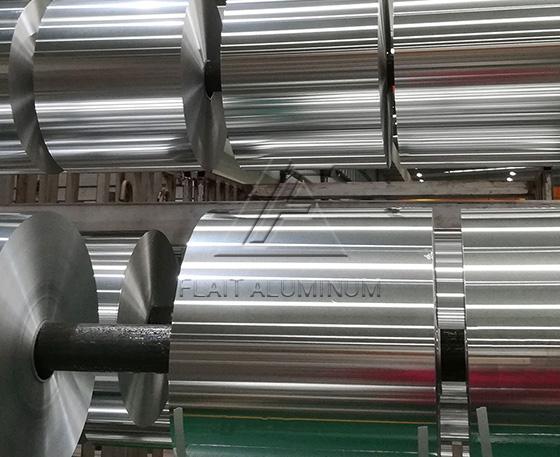

Battery Shell Foil

Alloys: 1060,1235,1070
Tempers: O,H18
Width(mm): 100-1600
Thickness(mm): 0.016-0.20
Length(mm): C

Quick Quote Get A Quote

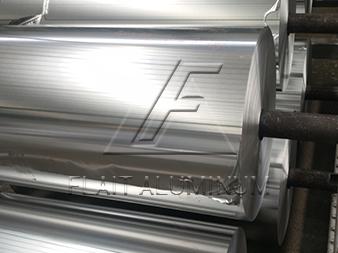

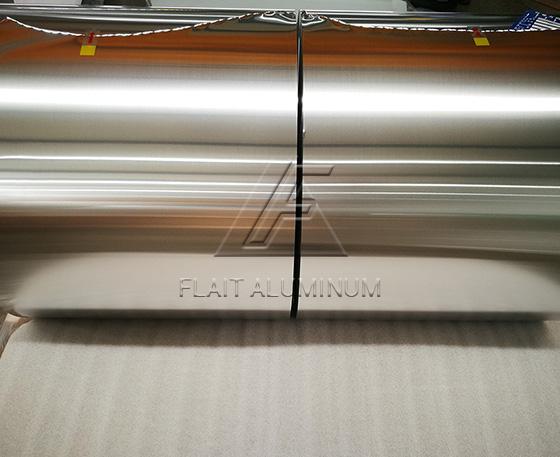

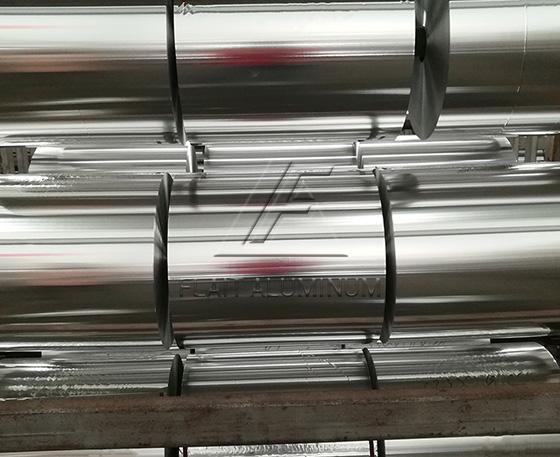

Introduction of Battery Shell Foil

Battery aluminum foil is one of the base materials for new energy vehicle lithium batteries. Generally, the lithium-ion battery industry uses rolled aluminum foil as the positive electrode collector. The main constituent materials of lithium-ion batteries include electrolyte, separator materials, positive and negative electrode materials, etc. The positive electrode includes a current collector composed of aluminum foil and lithium cobaltate or lithium iron phosphate. At present, general battery foil products generally require a strength of ≧180Mpa, and it is pure aluminum alloy, which means that battery foil is a product that has extremely strict requirements on the base material of aluminum foil, and battery foil requires the thinnest thickness and highest strength, the highest surface dyne value, the smallest thickness difference, the best plate shape, and the cleanest surface. Click to Order

1235 aluminum foil, 1060 aluminum foil are widely used on aluminum foil for lithium-ion batteries. The product has uniform surface color, clean, flat plate shape, no obvious oil stains; strength > 180Mpa, elongation > 1.5%, wettability > 32 dyne, can effectively Improve the adhesion between the active material and the current collector, and reduce the manufacturing cost.

Specification of Battery Shell Foil

Alloy	Temper	Thickness (mm)	Width (mm)	Length (mm)
1235	O, H18	0.014-0.2	100-1600	C
1060	O, H14, H18	0.016-0.2	100-1600	C
1070	O, H18	0.016-0.2	100-1600	C

Chemical Composition
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Each	Total	Al
1060	0.25	0.35	0.05	0.03	0.03	-	-	0.05	0.03	0.03	-	99.6
1070	0.2	0.25	0.04	0.03	0.03	-	-	0.04	0.03	0.03	-	99.7
1235	0.65		0.05	0.05	0.05	-	-	0.1	0.06	0.03	-	99.35

Advantages of Battery Shell Foil

The surface of the aluminum foil is uniform, clean and flat, without obvious roller marks, pits, pinholes and corrosion marks;
No rolling defects such as creases, mottling and bright lines on the surface of the aluminum foil;
No color difference on the surface of aluminum foil;
Surface is free of oil, no serious oil smell, and no oil spots visible to the naked eye.

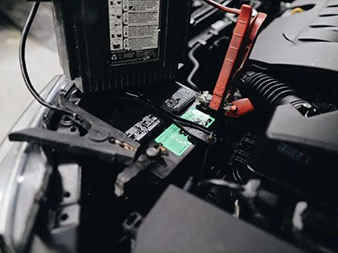

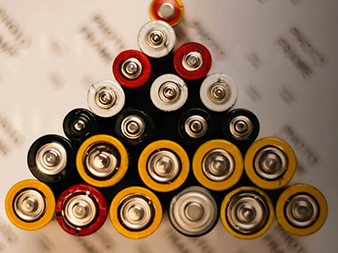

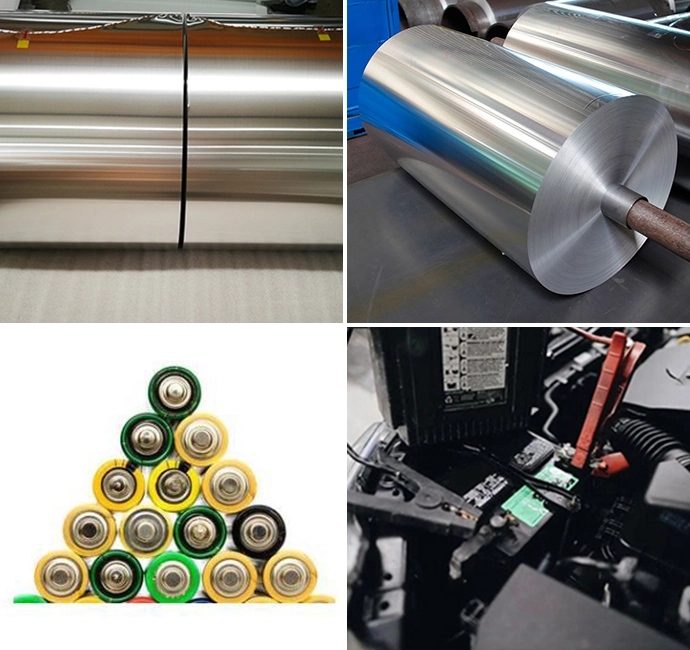

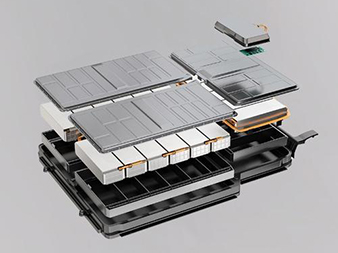

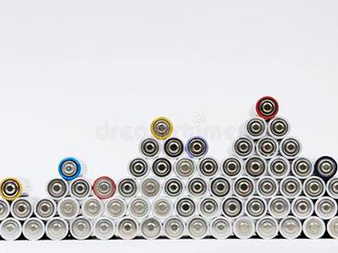

Application of Battery Shell Foil
