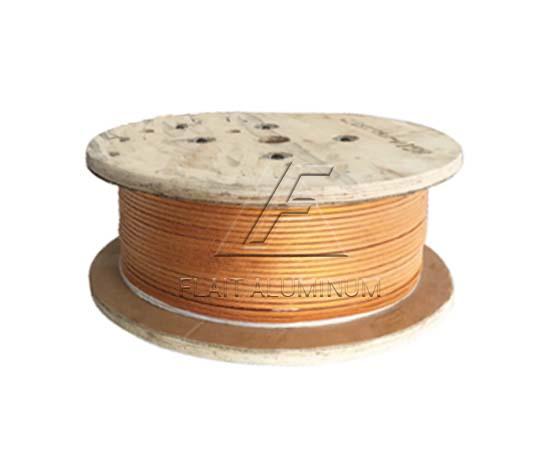

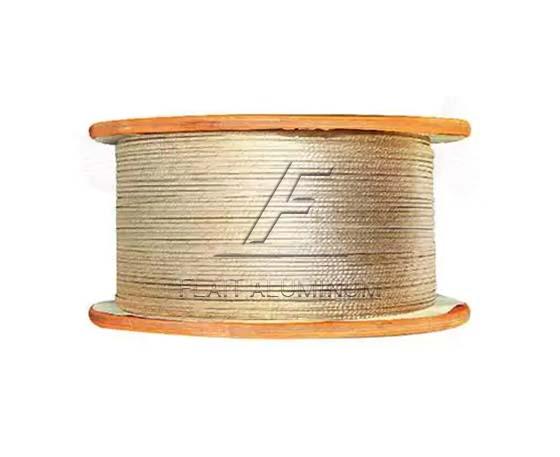

Glass Fiber Coated Polyester Film Copper (Aluminum) Wire

Product: Glass Fiber Coated Polyester Film Wire
Material: Aluminum,copper
Round wire diameter: 1.70-6.00mm
Rectangular wire size: a:1.0-6.3mm,b:3.0-25.0mm ; a:0.8-5.6mm,b:2.0-16.0mm
Thermal class: 130, 155, 180, 200
Covering material: Glass Fiber Coated Polyester Film

Quick Quote Get A Quote

The Introduction of Glass Fiber Coated Polyester Film Copper (Aluminum) Wire

Glass fiber coated polyester film copper (aluminum) wire, is first wrapped with polyester film on high-quality aluminum/copper conductor, and then wrapped with single and double glass fibers, and then impregnated with insulating varnish with the required temperature resistance index and baked to make the glass fibers, the glass fibers and the film, and the conductors bonded into a whole. The conductor shape of glass fiber coated polyester film copper (aluminum) wire can be divided into rectangular wire and round wire, with voltage breakdown resistance and temperature resistance classes of 130, 155, 180, and 200. It is widely used in the windings of reactors, transformers, motors or other similar electrical products.

The Product Specification of Glass Fiber Coated Polyester Film Copper (Aluminum) Wire

Aluminum rectangular wire range		Copper rectangular wire range
Narrow side a	Broad side b	Narrow side a	Broad side b
1.00-6.30mm	3.00-25.00mm	0.80-5.60mm	2.00-16.00mm
Thermal class		130, 155, 180, 200
Resistivity of aluminum flat wire at 20℃		≤0.028010Ωmm²/m
Resistivity of copper flat wire at 20℃		≤0.017241Ωmm²/m
Copper/aluminum round wire diameter		φ1.7—φ6.0
Standards		NB/T31048.-2014
Note		We can customize production according to user needs

Product name	Insulation thickness (mm)	Deviation	Minimum breakdown voltage (V)
Fiberglass Film covered winding Wire	0.2	±15%	2500
	0.3	-15%
	0.4		5000
	0.5
	0.6
	0.7		6000
	0.8
	0.9
The insulation thickness and breakdown voltage shall comply with the provisions of this table or be determined by negotiation between the supplier and the buyer. The insulation thickness on the narrow side (B-b) is not evaluated.

Bending		Round bar diameter
Broad side	≤8.00	10* Broad side size
Broad side	＞8.00	15* Broad side size
Narrow side	All specifications	10* Narrow side size
After the glass fiber coated film wire is bent on the round rod with the diameter specified in the table, the wrapping layer should not be cracked to expose the film. Single glass fiber coated film wire is not evaluated.

The Product Features of Glass Fiber Coated Polyester Film Copper (Aluminum) Wire

Excellent electrical properties
Good mechanical strength
Good heat resistance
Good wear resistance and impact resistance
Good varnishing performance
Good winding performance

The Application of Glass Fiber Coated Polyester Film Copper (Aluminum) Wire

◆ Transformer: Used for windings of various dry-type transformers, oil-immersed transformers and special transformers, especially suitable for occasions with high requirements for insulation performance and heat resistance.

◆ Motor: Used for windings of various motors, generators and welding machines, which can operate reliably under high temperature and high load conditions.

◆ Reactor: Used for windings of various reactors and inductors, providing stable inductance performance.

◆ Electromagnet: Used for windings of various electromagnets and solenoid valves, providing reliable electromagnetic force.

◆ Charging piles: With the popularization of new energy vehicles, the demand for charging piles continues to increase, and this electromagnetic wire has also begun to be used in the windings of charging piles.

◆ Other special electrical equipment: For example, some special motors, electrical appliances and instruments in high temperature environments.
