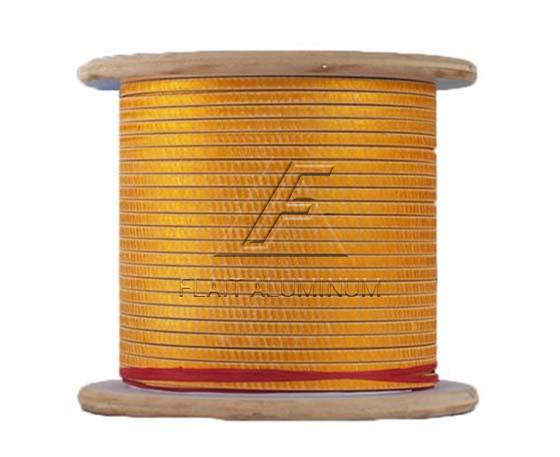

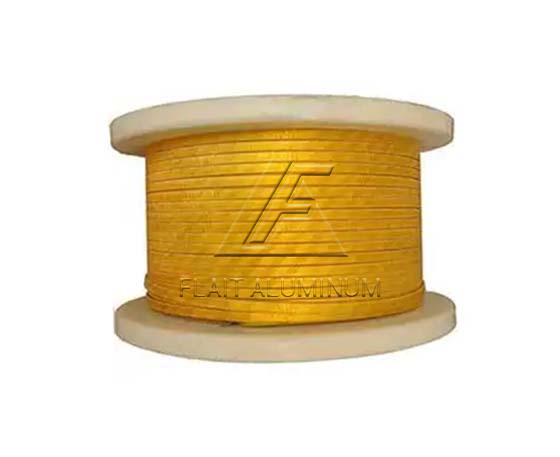

Glass Fiber Coated Polyimide Film Copper (Aluminum) Wire

Product: Glass Fiber Coated Polyimide Film Wire
Material: Aluminum,copper
Round wire diameter: 0.90-5.00mm
Rectangular wire size: a:1.0-6.3mm,b:3.0-25.0mm ; a:0.8-5.6mm,b:2.0-16.0mm
Thermal class: 130, 155, 180, 200
Covering material: Glass Fiber Coated Polyimide Film

Quick Quote Get A Quote

The Introduction of Glass Fiber Coated Polyimide Film Copper (Aluminum) Wire

Glass fiber coated polyimide film copper (aluminum) wire is a winding wire made by coating a polyimide film with adhesive material, wrapping it on a high-quality copper/aluminum conductor, and baking it to make the films and the conductors bonded together, then wrapped with a glass fiber wrapped composite insulation layer. The conductor shape can be divided into rectangular wire and round wire. Glass fiber coated polyimide film copper (aluminum) wire has voltage breakdown resistance and temperature resistance classes are 130, 155, 180, and 200.

Glass fiber coated polyimide film copper (aluminum) wire is widely used in windings of large and medium-sized high-voltage motors, special motors and electrical windings, dry-type transformers, reactors, wind turbines, and rail transit. It has excellent electrical properties and high mechanical properties and moisture and heat resistance.

The Product Specification of Glass Fiber Coated Polyimide Film Copper (Aluminum) Wire

Aluminum rectangular wire range		Copper rectangular wire range
Narrow side a	Broad side b	Narrow side a	Broad side b
1.00-6.30mm	3.00-25.00mm	0.80-5.60mm	2.00-16.00mm
Thermal class		130, 155, 180, 200
Resistivity of aluminum flat wire at 20℃		≤0.028010Ωmm²/m
Resistivity of copper flat wire at 20℃		≤0.017241Ωmm²/m
Standards		NB/T31048.-2014
Note		We can customize production according to user needs

Aluminum round wire size
Diameter (mm)	Deviation
0.90＜d≤2.50	±0.025
2.50＜d≤5.00	±1%d

Product name	Insulation thickness (mm)	Deviation	Minimum breakdown voltage (V)
Fiberglass Film covered winding Wire	0.2	±15%	2500
	0.3	-15%
	0.4		5000
	0.5
	0.6
	0.7		6000
	0.8
	0.9
The insulation thickness and breakdown voltage shall comply with the provisions of this table or be determined by negotiation between the supplier and the buyer. The insulation thickness on the narrow side (B-b) is not evaluated.

Bending		Round bar diameter
Broad side	≤8.00	10* Broad side size
Broad side	＞8.00	15* Broad side size
Narrow side	All specifications	10* Narrow side size
After the glass fiber coated film wire is bent on the round rod with the diameter specified in the table, the wrapping layer should not be cracked to expose the film. Single glass fiber coated film wire is not evaluated.

The Product Features of Glass Fiber Coated Polyimide Film Copper (Aluminum) Wire

Excellent heat resistance: Polyimide film itself has excellent high temperature resistance, usually reaching a temperature resistance of 220℃ or higher. The addition of glass fiber and high temperature resistant insulating paint further enhances its heat resistance, enabling it to work stably and for a long time in high temperature environment.
Good electrical insulation performance: Polyimide film has excellent dielectric properties and breakdown voltage strength. The combination of glass fiber and insulating paint further improves its insulation performance and ensures the reliable operation of electrical equipment.
Excellent mechanical properties: The addition of glass fiber enhances the mechanical strength and wear resistance of the wire, enabling it to withstand certain mechanical stress and vibration.
Chemical corrosion resistance: Polyimide film has good chemical corrosion resistance and can resist corrosion from a variety of chemicals.
Thinner insulation thickness: Compared with traditional glass fiber covered wire, the use of polyimide film can achieve thinner insulation thickness, which is conducive to reducing the volume and weight of electrical equipment.

The Application of Glass Fiber Coated Polyimide Film Copper (Aluminum) Wire

◆ High temperature motor: Used for various motor windings that need to work in high temperature environments, such as motors in metallurgy, chemical industry, mining and other industries.

◆ Special transformers: Transformer windings used in high temperature, high frequency or special environments, such as dry-type transformers, special power supplies, etc.

◆ Reactors: Windings used for various reactors, such as filter reactors, current limiting reactors, etc.

◆ Welding equipment: Windings used for welding equipment such as electric welders, which usually work in high temperature and high current environments.

◆ Aerospace field: Due to its excellent high temperature resistance and mechanical properties, it can also be used in electrical equipment in the aerospace field.

◆ Other high temperature electrical equipment: Various electrical equipment that needs to work in high temperature, high pressure, humidity or other harsh environments.
