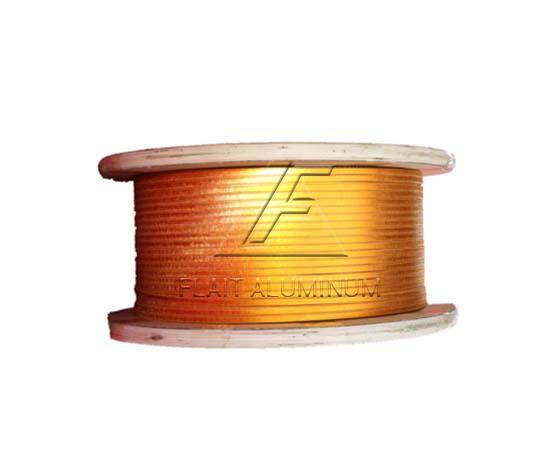

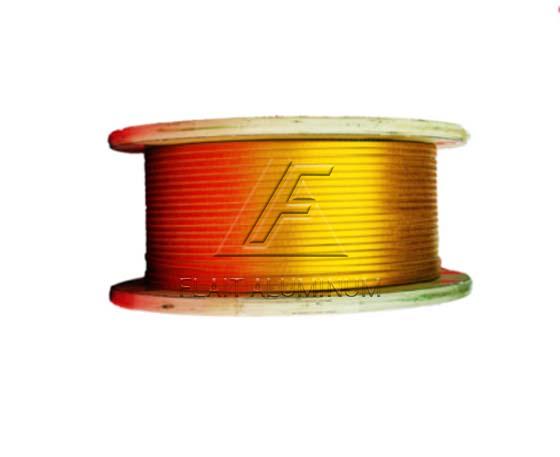

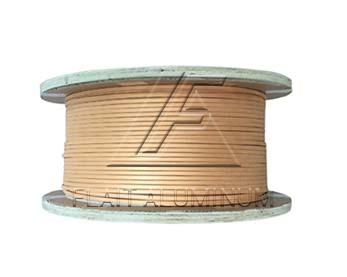

Glass Fiber Wound Enameled Rectangular Copper/Aluminum Wire

Product: Glass Fiber Wound Enameled Rectangular Wire
Material: Aluminum,copper
Rectangular wire size: a:1.0-6.3mm,b:3.0-25.0mm ; a:0.8-5.6mm,b:2.0-16.0mm
Thermal class: 130, 155, 180, 200
Covering material: Glass Fiber Wound Enameled

Quick Quote Get A Quote

The Introduction of Glass Fiber Wound Enameled Rectangular Copper/Aluminum Wire

Glass fiber wound enameled rectangular wire is first enameled on high-quality copper (aluminum) wire, and then wrapped with glass fiber. According to customer needs, the required temperature resistance index of insulating paint is matched, and the baking treatment is carried out to make the glass fiber, insulating paint and conductor bonded into a whole. The temperature resistance classes of this product are 130, 155, 180, and 200, is widely used in generators, motors, motors and other electrical equipment windings.

The Product Specification of Glass Fiber Wound Enameled Rectangular Copper/Aluminum Wire

Aluminum rectangular wire range		Copper rectangular wire range
Narrow side a	Broad side b	Narrow side a	Broad side b
1.00mm-6.30mm	3.00mm-25.00mm	0.80mm-5.60mm	2.00mm-16.00mm
Thermal class		130, 155, 180, 200
Resistivity of aluminum flat wire at 20℃		≤0.028010Ωmm²/m
Resistivity of copper flat wire at 20℃		≤0.017241Ωmm²/m
Standards		NB/T31048.-2014
Note		We can customize production according to user needs

Wide side insulation thickness and narrow side insulation thickness
Size of conductor broadside /mm		Glass fiber coated 2-grade paint film thickness, enameled wire insulation thickness /mm
Size of conductor broadside /mm		Single glass fiber wrapped grade 2GL1			Double glass fiber wrapped grade 2GL2
>	≤	Minimum	Nominal	Maximum	Minimum	Nominal	Maximum
—	3.15	0.23	0.29	0.35	0.35	0.42	0.49
3.15	6.3	0.25	0.31	0.37	0.38	0.45	0.52
6.3	12.5	0.27	0.34	0.41	0.43	0.5	0.57
12.5	16	0.3	0.38	0.46	0.46	0.54	0.62

Diameter of glass fiber enameled rectangular wire
Glass fiber enameled rectangular winding wire bending		Rod diameter
Broad side	≤8.00	10×broad side size
	>8.00	15×broad side size
Narrow side	All specifications	10×Narrow side size
The diameter of the glass fiber enameled flat wire should be free of cracks in the wrapping layer after the broad side and narrow side bending on the round rod respectively.

Breakdown voltage of glass fiber enameled rectangular wire
Insulation type		Minimum breakdown voltage /V
2-grade film thickness enameled wire +	Single glass fiber wrapped Grade 2GL1	1500
	Double glass fiber wrapped Grade 2GL2	2000

The Product Features of Glass Fiber Wound Enameled Rectangular Copper/Aluminum Wire

Double insulation protection: The paint layer is the first layer of insulation, providing basic electrical insulation performance; the outer layer of glass fiber provides additional mechanical protection, wear resistance and high temperature resistance.
Excellent high temperature resistance: Glass fiber enameled flat wire has better high temperature resistance than ordinary enameled flat wire, and can withstand working temperature up to 200℃.
Good insulation performance: Both the paint layer and the glass fiber have good insulation performance, which can effectively prevent current leakage and short circuit.
Excellent mechanical strength: Glass fiber enameled flat wire has higher mechanical strength and wear resistance than ordinary enameled flat wire, and has a longer service life.
Good heat dissipation performance: The flat wire structure has a larger surface area than the round wire, which is conducive to heat dissipation, reducing the temperature rise of the conductor and improving the efficiency of electrical equipment.
Processing performance: Compared with ordinary glass fiber covered flat wire, the paint layer can improve the surface smoothness of the wire, which is conducive to the winding and processing of the coil.

The Application of Glass Fiber Wound Enameled Rectangular Copper/Aluminum Wire

◆ Motor: Widely used in various motor windings, such as high-voltage motors, traction motors, explosion-proof motors, special motors, etc. It is especially suitable for medium and high voltage AC motors, medium and large DC motors, medium and large wind turbines, etc. In high voltage motors, glass fiber enameled flat wire can provide higher insulation strength and anti-corona performance, ensuring the reliable operation of the motor.

◆ Transformer: Used in dry-type transformers, special transformers, etc. In dry-type transformers, glass fiber enameled flat wire can improve the heat resistance level and insulation performance of the transformer.

◆ Reactor: Used in various reactor coils.

◆ Electric welder: Used in electric welder transformers and cables.
