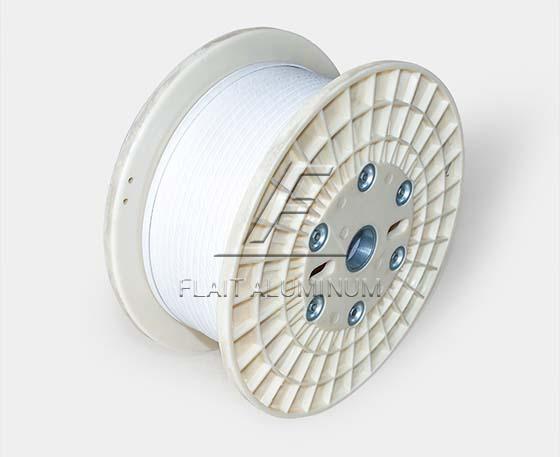

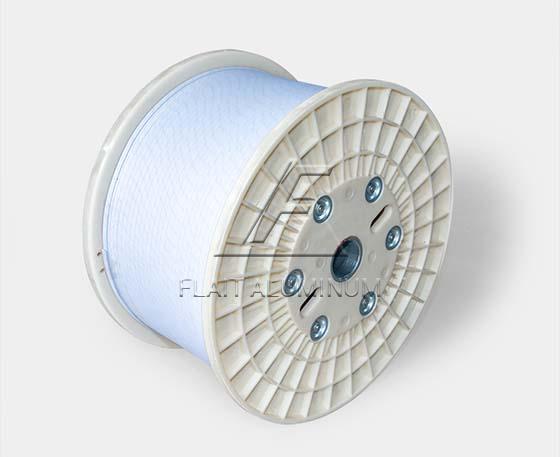

Non-Woven Polyester Film Coated Wire

Product: Non-Woven Polyester Film Coated Wire
Material: Aluminum,copper
Round wire diameter: 0.90-5.00mm
Rectangular wire size: a:1.0-6.3mm,b:3.0-25.0mm ; a:0.8-5.6mm,b:2.0-16.0mm
Thermal class: 130, 155
Covering material: Non-Woven Polyester Film

Quick Quote Get A Quote

The Introduction of Non-Woven Polyester Film Coated Wire

Non-woven polyester film coated copper (aluminum) wire is a wire made of oxygen-free copper rod or electrical round aluminum rod that has been extruded or drawn and annealed by a die of the required specifications, and then wrapped with 2-3 layers of polyester film or electrical non-woven fabric as an insulating layer on the aluminum-copper conductor. Non-woven polyester film coated wire has good voltage resistance and a temperature resistance grade is B grade 130℃ or F grade 155℃. It is mainly used for windings of reactors, dry-type transformers and other electrical equipment.

The Product Specification of Non-Woven Polyester Film Coated Wire

Aluminum rectangular wire range		Copper rectangular wire range
Narrow side a	Broad side b	Narrow side a	Broad side b
1.00-6.30mm	3.00-25.00mm	0.80-5.60mm	2.00-16.00mm
Thermal class		130, 155
Resistivity of aluminum flat wire at 20℃		≤0.028010Ωmm²/m
Resistivity of copper flat wire at 20℃		≤0.017241Ωmm²/m
Standards		GB5584.3-2009, GB5584.2-2009, GB/T 7672-2008
Note		We can customize production according to user needs

Size of aluminum copper round wire

Diameter/mm	Deviation /mm
0.9＜d≤2.50	±0.025
2.50＜d≤5.00	±1%d

Technical indicators of non-woven polyester film coated wire

Wrapping method	Insulation thickness(mm)		Breakdown voltage not less than
Wrapping method	Standard	Tolerance	Breakdown voltage not less than
2 layers of polyester film	0.22	±0.03	5000
2 layers of polyester film + 1 layer of non-woven fabric	0.33	±0.03	5000
3 layers of polyester film	0.3	±0.03	7500
3 layers of polyester film + 1 layer of non-woven fabric	0.42	±0.03	7500

The Product Features of Non-Woven Polyester Film Coated Wire

Good temperature resistance
Excellent insulation performance
High mechanical strength
Wide range of applications

The Application of Non-Woven Polyester Film Coated Wire

◆ Transformer: Used as transformer winding wire to achieve voltage conversion.

◆ Reactor: Used for reactor winding to suppress harmonics and improve power factor.

◆ Motor: Used as motor winding wire to drive the motor to rotate.

◆ Other electrical equipment: Widely used in other electrical equipment that requires insulated wires.
