PVDF coated aluminium sheets supplier

2024-02-28 11:29:31

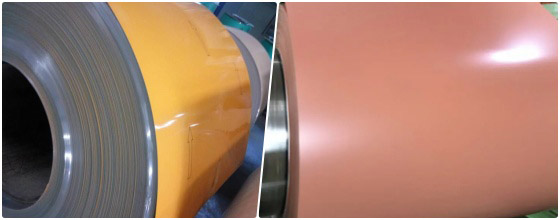

PVDF coated aluminium sheets

In the modern construction industry, materials often need to be sprayed to achieve the desired decorative effect, and color-coated aluminum panels are the product type created for this purpose. Common color spray coatings include PE coating and PVDF coating. PVDF coated aluminum sheets are also called PVDF Pre-coated aluminum sheets, or PVDF Pre-painted aluminum sheets. The surface of the aluminum sheet is coated with polyvinylidene fluoride (PVDF) paint to improve the weather resistance and aesthetics of the aluminum sheet. It can better adapt to outdoor environment applications and is a very popular material in the modern construction industry. Aluminum wall panels, curtain walls and roof panels are the most common applications of PVDF coated aluminum sheets.

Advantage of PVDF coated aluminum sheets

1. Compared with steel plates and other plates, PVDF coated aluminum sheets have good durability, corrosion resistance and longer service life.

2. Resistant to sunlight and not easy to change color at high temperatures;

3. High chemical resistance and pollution resistance, more environmentally friendly than other coatings containing VOCs.

4. Good weather resistance, no damage when used outdoors for a long time, and anti-fading.

Strength of Flait Aluminum

Flait Aluminum is a professional aluminum plate manufacturer, supplying a full range of aluminum products of various grades. We have introduced advanced color coating production lines from abroad and adopted a multi-layer coating process. The products undergo pretreatment, initial coating, fine coating, curing, and finally the final product. Each link is strictly controlled to ensure that all product surfaces are smooth, firm coating, uniform color.

We provide PVDF coated aluminum sheets such as 1 series, 3 series and 5 series. The common alloy grades include 1050, 1060, 1100, 3003, 3004, 5052, etc. The thickness of the coils provided is 0.2mm-1.0mm, and the thickness of the sheets is 1.0 mm-5.0 mm, the maximum width can be 1850 mm, and the coating thickness is usually 15μm-30μm. In addition, we can also produce according to customer’s customized specifications, including special size, shape, coating color, coating thickness, etc.



Specification of PVDF coated aluminium sheets

Product PVDF coated aluminium sheets
Alloy 1050,1060,1100,3003,3004,3105,5052
Thickness(mm) 0.2-1.0mm for coil;1.0-5.0mm for sheet
Width(mm) ≤1850
Coating Thickness 15-30μm or request, one side or both sides
Finish PVDF coated in various colors, wood finish, stone finish, marble finish
Color RAL or as per customers’ samples
Standard YS/T431-2000



Application of PVDF coated aluminium sheets

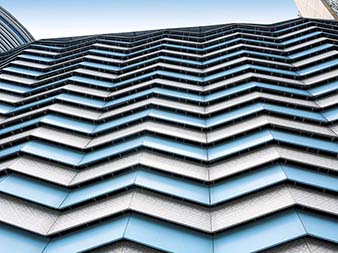

  • curtain walls
    Architectural exterior cladding

    Building facades, curtain walls, and decorative elements.

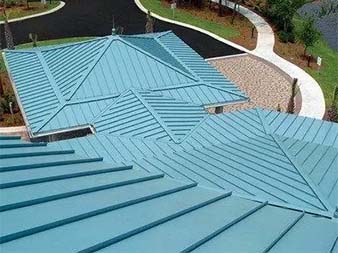

  • Roofing systems
    Roofing systems

    Construction of roofing systems for both residential and commercial buildings.

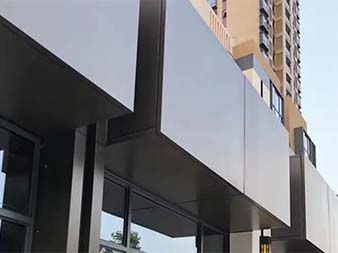

  • Signage and outdoor advertising
    Signage and outdoor advertising

    Outdoor signage, large-scale billboards, signage boards, and other promotional displays.

Original Source:https://www.flait-aluminum.com/Color-coated-aluminum-coil.html
