Stucco embossed aluminum coil for pipe insulation supplier

2023-11-27 11:17:23

In many places in our lives and production, pipes need to be insulated. There are many choices of insulation materials. Aluminum coils have become a popular choice for pipe insulation because of their excellent material properties. Insulated aluminum coils are usually used as the waterproof layer/outer layer in pipe insulation. The surface treatment methods of aluminum coils include polishing, smoothing, plaster embossing, etc. If you have any doubts about which type of aluminum coil to choose, you might as well take my advice. Choosing Flait stucco embossed aluminum coil for pipe insulation is absolutely reliable.Click to Order

Flait Aluminum is a professional aluminum coil supplier that produces and supplies aluminum plate and foil products of various brands and specifications, including 1000 series and 3000 series stucco embossed aluminum coils for pipe insulation. Flait usually uses alloy 1060 or 3003 to manufacture stucco embossed insulated aluminum coils. The embossed aluminum surface is selected with an orange peel pattern, and the moisture barrier is composed of polysalin and composite kraft paper.

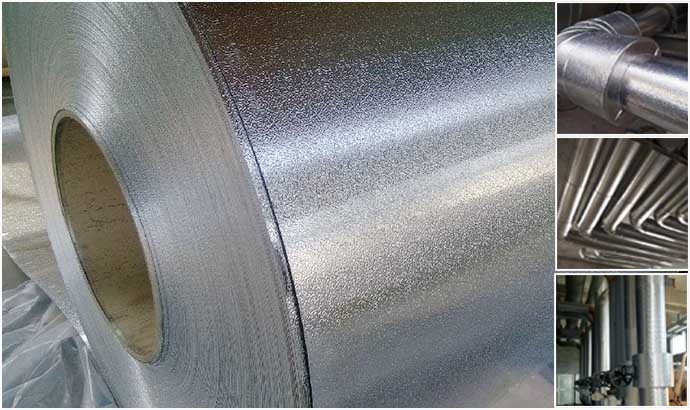

Stucco embossed aluminum coil for pipe insulation

Why choose stucco embossed aluminum coil for pipe insulation?

  • Embossing can appropriately increase the strength and ductility of aluminum coils, which in disguise increases the service life of the product.
  • The pattern of the plaster embossed aluminum coil makes the product more wear-resistant and can effectively reduce damage caused by scratches, scratches, and collisions.
  • Stucco embossed aluminum coil veneer can reduce reflectivity and will not cause strong reflection. At the same time, it can hide small scratches and flaws caused by physical damage during or after installation, and has a good visual effect.
  • The excellent moisture-proof and anti-corrosion properties of stucco embossed aluminum coils can effectively prevent the weathering of pipes. The dense oxide film on the surface can protect the aluminum coil itself from oxidation and corrosion.



Specification of stucco embossed aluminum coil for pipe insulation

Alloy 1060,3003
Temper O,H14,H16,H24,H26,etc.(Common use: 1060 H14/H16,3003 H14/H16 )
Thickness(mm) 0.4-1.5
Width (mm) 914mm,1000mm,1200mm,1219mm
Length 50’ (15 meters), 100’ (30 meters), 200’ (60 meters), 300’ (90 meters), Coil (specify lengths), Flat Sheets (cut to length), Cut&Rolled (to specific lengths)
ID 75mm,150mm,305mm,405mm,505mm with or without paper core
Surface Stucco embossed (orange peel)
Quality standard ISO9001, GB/T3880, ASTM B209
Sample Available
Note we can produce any size according to clients requirement.



Application of stucco embossed aluminum coil for pipe insulation

1060 stucco embossed aluminum coil is mainly used for rust prevention and insulation projects in pipelines, equipment, workshops, buildings and other facilities. Series 1 pure aluminum is the most commonly used aluminum product and has the lowest price. 1060 aluminum coil is the representative of the first series of aluminum coils and has the highest cost performance. It is widely used in waterproofing of ordinary buildings and insulation and rust prevention of municipal pipelines. However, 1060 pure aluminum coils are not resistant to acid and alkali corrosion and are not suitable for equipment and pipeline insulation in power plants and chemical plants.

3003 stucco embossed aluminum coil is an Al-Mn alloy coil and is a common rust-proof aluminum coil. 3003 stucco embossed aluminum coil is a representative product of the 3 series aluminum-manganese alloy. The aluminum coil has high hardness and good mechanical properties. Its strength, rust resistance, and corrosion resistance are higher than that of 1060 aluminum coil, and its price is also higher than that of 1060 aluminum coil. 3003 sheathed aluminum coils are often used for thermal insulation of refrigeration equipment, storage tanks, pressure vessels, pipes, heat sinks, etc. It can also be used as insulation on pipes, building roofs and walls.



Advantage of stucco embossed aluminum coil for pipe insulation

  • The stucco embossed aluminum coils produced by Flait have accurate dimensions, beautiful and smooth appearance, no oil stains, no color difference, and uniform thickness.
  • The surface quality of the aluminum coil is good, without oil spots, waves, scratches, roller marks, neat trimming, and no burrs.
  • Perfect packaging. The packaging of stucco embossed aluminum coils should be moisture-proof and rain-proof to ensure that the surface of the aluminum coils is intact and without scratches. According to the customer’s needs, it can be packed in a whole roll or in small rolls. In order to facilitate customer construction and use, please inform us in advance.
  • Competitive price. The origin of raw materials, large-scale production, and direct supply from manufacturers make the products cost-effective.



Original Source:https://www.flait-aluminum.com/Aluminum-Jacketing-Coil-Roll.html

Tags:stucco embossed aluminum coil
