Types of enameled wire for motors

2025-02-26 15:37:37

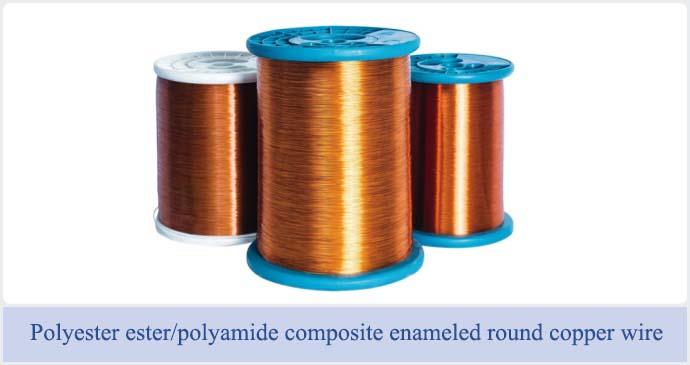

Polyester ester/polyamide composite enameled round copper wire

1. Model: Q (ZY/X)-1/180 Q (ZY/X)-2/180
2. Temperature resistance grade: H grade (temperature index 180)
3. Production specifications: Φ0.20-Φ1.50mm
4. Product implementation standard: GB 6109.10 IEC 317-22 (1990)
5. Main performance: The product has high thermal shock resistance and low surface friction coefficient.
6. Application: Suitable for coil windings of motors and instrument communication equipment working for a long time at high temperature, especially suitable for use in high-speed winding occasions.

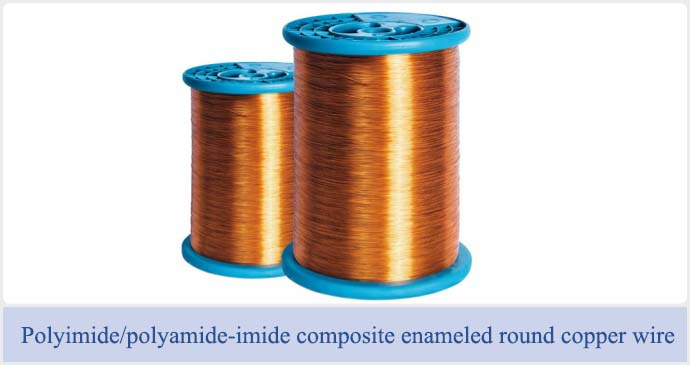

1. Model: QY-1 QY-2
2. Temperature resistance grade: Class C (temperature index 220)
3. Production specifications: Φ0.06-Φ2.50mm
4. Product implementation standard: GB 6109.6 IEC 317-7 (1990)
5. Main performance: The product has high heat resistance, mechanical properties, and solvent resistance, which is a series higher than polyester polyester imide.
6. Application: Suitable for coil windings of motors and instrument communication equipment that work for a long time at high temperatures.

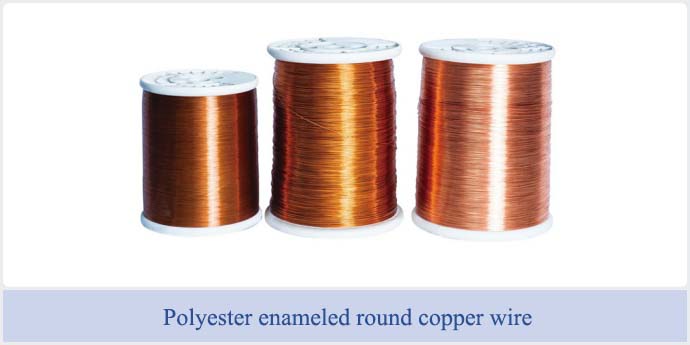

1. Model: QZ-1/130 QZ-2/130
2. Temperature resistance grade: Class B (temperature index 130)
3. Production specifications: Φ0.06-Φ2.50mm
4. Product implementation standard: GB6109.7 IEC 317-3
5. Main performance: This product has excellent mechanical and electrical properties, thermal shock performance and solvent resistance.
6. Application: Suitable for coil windings of motors, electrical appliances, instruments and telecommunications equipment.

1. Model: QZY-1/180 QZY-2/180
2. Temperature resistance grade: H grade (temperature index 180)
3. Production specifications: Φ0.06-Φ2.50mm
4. Product implementation standard: GB 6109.5-88 IEC 317-8 (1990)
5. Main performance: The product has excellent heat resistance, mechanical properties and solvent resistance.
6. Application: Suitable for coil windings of motors, instruments and communication equipment working at high temperatures for a long time.

1. Model: QA-1/130/150 (UEW)
2. Temperature resistance grade: Class B (temperature index 130/150)
3. Production specifications: Φ0.018-Φ1.50mm
4. Product implementation standard: GB 6109.4 IEC 317-4 (1970)
5. Main performance: The product has excellent direct welding performance, high-frequency resistance, low dielectric loss under high-frequency conditions, and the product can be dyed into a variety of colors for special needs.
6. Application: This product is suitable for coil windings in motors, electrical instruments, communication equipment and in high-frequency environments.

1. Model: Q (ZY/XY)-1/200 Q (ZY/XY)-2/200
2. Temperature resistance grade: H-C grade (temperature index is 200)
3. Production specifications: Φ0.20-Φ1.50mm
4. Product implementation standard: GB 6109.11-90 IEC 317-13 (1990)
5. Product performance: The product has higher thermal shock performance and smaller surface friction coefficient, and has better refrigerant resistance and solvent resistance.
6. Application: Especially suitable for use in motor windings of sealed refrigeration systems.
