6061 Medium Thick Aluminum Plate for Car Frame

6061 medium thick aluminum plate for car frame with lighter weight, which can reduce the weight of the whole vehicle, improve fuel economy and reduce energy consumption; 6061 medium-thick aluminum plate has high strength and rigidity, which can provide sufficient structural support and overall Protection to ensure the safety of the vehicle in motion; it can withstand harsh weather and road conditions for a long time and improve the durability of the vehicle. Specifications of 6061 Medium Thick Aluminum Plate for Car Frame Alloy 6061 Temper T4,T6 Thickness (mm) 2-10 Width (mm) 1219-1524 Length (mm) 2438 Chemical Composition Mg Si Cu Fe Mn Cr 0.8%~1.2% 0.4%~0.8% 0.15% 0.7% 0.15% 0.35% Mechanical Properties Alloy Yield strength Rp0.2(MPa) Tensile strength Rm(Mpa) Elongation A(%) Dureza (HB) 6061 135-276 215-331 8-18% 95-120   Features of 6061 Medium Thick Aluminum Plate for Car Frame Good strength and machinability Higher strength and hardness Good welding performance Good corrosion resistance   Application of 6061 Medium Thick Aluminum Plate for Car Frame 6061 medium-thick aluminum plate is widely used in frame manufacturing in automobile manufacturing. Its light weight, high strength and good processability make it an ideal material for the manufacture of bicycle frames. It can be used...

Get A Quote

1060 3003 5052 Aluminum Insulation Jacketing Roll

Aluminum jacketing coil roll is also called insulation aluminum coil roll, is often used in equipment insulation and pipeline insulation projects. It refers to adding a layer of aluminum skin outside the insulation material to reduce heat loss and bring better insulation effects. For equipment insulation, the aluminum skin insulation system can reduce the impact of the external low temperature environment on the equipment, greatly reduce energy consumption and loss, and thus bring higher economic benefits. Insulation and energy saving are of great significance in industrial production and life. It is widely used in electric power, chemical industry and other industries equipment, tanks, pipeline anticorrosion and heat preservation. Our aluminum insulation jacketing roll has smooth surface, no oil stain, no color difference, uniform thickness, flat plate without waves. The more commonly used aluminum jacketing coil roll are: 1060 thermal insulation aluminum coil (pure aluminum skin), 3003 aluminum skin (rust-proof aluminum skin), 5052 aluminum coil (corrosion-resistant aluminum skin), etc. The insulation jacket aluminum coil produced by Flait aluminum has beautiful and smooth appearance, can be well applied to the insulation and packaging of pipes, etc. The common width of aluminum insulation jacketing coil roll is 1 meter, and the thickness is...

Get A Quote

How to choose Battery Shell Foil?

Battery aluminum foil is one of the base materials for new energy vehicle lithium batteries. Different batteries have different requirements for casing materials. Choosing the right casing foil is crucial to ensure optimal performance and safety. When choosing battery casing foil, we should pay attention to the thickness and strength of the foil. The foil should be able to withstand the mechanical stress the battery may encounter during its lifetime. In addition, the foil should also have good electrical conductivity to facilitate the efficient flow of electrical current. At the same time, the housing foil needs to have good adhesion properties to ensure a good combination with other components. Series 1 aluminum foil produced by Flait Aluminum, including 1060 aluminum foil,1070 aluminum foil, 1235 aluminum foil, etc. are widely used on aluminum foil for lithium-ion batteries. The product has uniform surface color, clean, flat plate shape, no obvious oil stains; strength > 180Mpa, elongation > 1.5%, wettability > 32 dyne, can effectively Improve the adhesion between the active material and the current collector. The Product Specification of Battery Shell Foil by Flait Aluminum Series Alloy Temper Thickness(mm) Width(mm) Length(mm) 1*** 106,010,701,235 H18 0.016-0.2 100-1600 C ID 76mm,152mm Surface Free of black spot, line...

Get A Quote

5083 high precision aluminum plate for aluminum fixture plate

In the manufacturing and processing industry, fixtures are a necessary tool for fixing and positioning workpieces to ensure the accuracy and stability of workpieces during processing or testing.High precision aluminum sheet has the advantages of high flatness, good surface quality, and stable size, and is regarded as an ideal fixture material. 5083 high precision aluminum sheet is used as the base material of the fixture plate because of its excellent performance. It provides a stable and reliable platform for fixing workpieces in precision machining, CNC milling, drilling and other manufacturing processes. Specifications of 5083 high precision aluminum plate for aluminum fixture plate Alloy 5083 high precision aluminum plate Temper H111,H112,H116,H321,etc. Thickness(mm) 0.3–300 Width(mm) 100-2650 Length(mm) 500-6000 Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements.   Alloy Temper Mechanical properties Tensile Strength Rm（Mpa） Yield strength Rp0.2（Mpa） Breaking elongation A5% Brinell hardness HBW 5083 H111，H112 240–290 110-130 12 70   Advantages of 5083 high precision aluminum sheet for aluminum fixture plate The surface of the 5083 precision aluminum sheet is very flat, which can provide a stable support plane and ensure that the workpiece maintains a stable position during processing. The 5083 high precision aluminum sheet has high dimensional stability and...

Get A Quote

5052 aluminum sheet for aluminum car pedals

Car pedals are common car accessories, usually used in SUVs, MPVs, RVs and passenger cars. The materials generally used to make car pedals are steel, aluminum alloy, stainless steel and plastic. In high-end and luxury models, the more common choice is aluminum pedals. The aluminum car pedals are mainly made of 5052 aluminum plate. 5052 aluminum plate belongs to aluminum-magnesium alloy, which is a relatively commonly used aluminum alloy material. Because of its excellent comprehensive performance, it is very popular in the automotive industry. Its advantages are strong and durable, and the overall light weight has good corrosion resistance and weather resistance, which can ensure a long service life. Specifications of 5052 aluminum sheet for aluminum car pedals Alloy 5052 aluminum plate Temper 0, H24, H32, H38, H112, etc. Thickness(mm) 0.15-600 Width(mm) 100-2650 Length(mm) According to customer requirements Surface Bright finish, Mill finish,Can be anodized Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements. Remark We can produce as per customers’ special requirements   Advantages of 5052 aluminum sheet for aluminum car pedals The 5052 aluminum plate has high strength, can withstand the load and impact generated on the car pedal, and is safe and reliable. Pedals...

Get A Quote

3003 aluminum plate for water cooling plate

The heat dissipation management of new energy vehicles is particularly important. In order to avoid the power battery temperature from being too high, it is necessary to adopt a reasonable way to dissipate heat. Liquid cooling is currently a more effective way to dissipate heat. The water-cooled plate of automobiles is generally made of aluminum brazing composite material, which is usually brazed by two upper and lower O-state aluminum sheets, which ensures the stability and safety of the power battery in a high-temperature working environment. The 3003 aluminum plate has excellent performance and is currently widely used as an automotive water-cooled plate material. Specifications of 3003 aluminum plate for water cooling plate Alloy 3003 3003 3003mod Brazing clad for CAB 4045 4343 4343 Temper O,H12,H14,H16,H18,H22,H24,H26 Thickness(mm) 0.5-5.0mm Width(mm) 500-1200mm Length(mm) C Clad Rate 4-18% per side, or customer requested Packing Export standard package Normal Alloys Plates 4045/3003, 4343/3003, 4045/3003/4045, 4343/3003/4343, 4343/3003/7072 and etc.   Advantages of 3003 aluminum plate for water cooling plate 3003 aluminum plate has high thermal conductivity and can conduct heat quickly. The density of aluminum is small, and the use of 3003 aluminum plate to make the water cooling plate can reduce space and weight. The...

Get A Quote

What is Brazing Aluminum Sheet Coil Strip

Brazing aluminum sheet coil strip refers to a process of joining two or more aluminum sheets, coils, or strips together using a filler material known as brazing alloy. Brazing is a high-temperature process that allows the aluminum pieces to be bonded without melting the base metal. The filler material, typically in the form of a thin layer or pre-placed wire, is melted and distributed between the aluminum surfaces by capillary action, forming a strong metallurgical bond upon cooling. Alloys commonly used for brazing aluminum sheet coil strip 3xxx series aluminum alloys: such as 3003, 3003MOD, 3103, etc. These aluminum alloys have good processability and weldability, and are often used as base materials for brazing clad plates. 4xxx series aluminum alloys: such as 4045, 4343, 4104, etc. These aluminum alloys are often used as brazing filler metal layers for joining other aluminum alloy layers. 7xxx series aluminum alloy: 7072 aluminum alloy has high strength and excellent corrosion resistance, and is suitable for some brazing clad plates with high performance requirements. Advantages of brazing aluminum sheet coil strip It can join different types of aluminum alloys, avoiding cumbersome surface treatment procedures, and can produce firm and void-free joints to ensure airtight connections....

Get A Quote

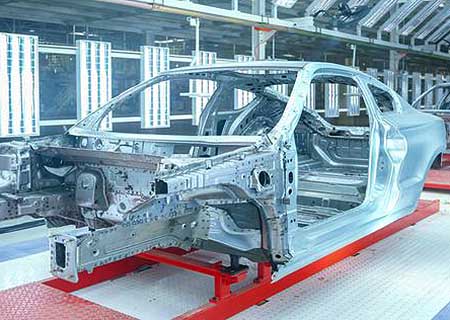

5754-O aluminum sheet for car body

Introduction of 5754-O aluminum sheet for car body   5754 aluminum plate is a typical alloy in the Al-Mg series alloy, which has the characteristics of medium strength, good corrosion resistance, weldability and easy processing and forming. 5754 aluminum alloy sheets in different heat treatment states are the main materials used in the automobile manufacturing industry (car doors, molds, seals) and canning industry. 5754-O aluminum plate has high plasticity, easy to punch, bend and form, very suitable for punching door linings and body panels. Specifications of 5754-O aluminum sheet for car body   Alloy 5754 aluminum plate Temper O Thickness(mm) 1.00 – 8.00 Width(mm) 1200 – 2650 Length(mm) 500 – 12000 Standard GB/T 3880, EN14286, EN485, ASTM B209   Alloy Si Fe Cu Mn Mg Cr Zn Ti Al 5754 0.4 0.4 0.1 0.5 2.60-3.60 0.3 0.2 0.15 Remainder   Advantages of 5754-O aluminum sheet for car body   Light weight: 5754 O aluminum plate has a lower density than traditional steel materials, which enables the body structure to reduce the weight of the vehicle while maintaining stability and safety, thereby improving fuel efficiency and driving performance. Corrosion resistance: 5754 O aluminum sheet has good corrosion resistance, which can reduce the body damage and life reduction caused by...

Get A Quote

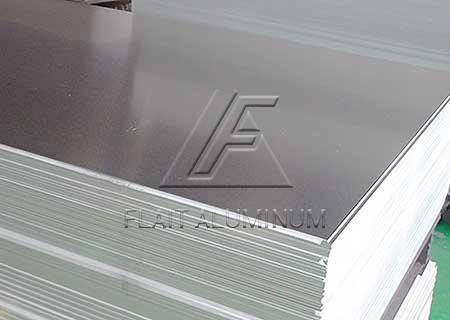

Anodized aluminum sheet coil for architectural decoration

The anodized aluminum plate is placed in the corresponding electrolyte (such as sulfuric acid, chromic acid, oxalic acid, etc.) as an anode, and electrolyzed under specific conditions and applied current. Anodized aluminum panels are oxidized to form a thin layer of aluminum oxide on the surface, resulting in anodized aluminum panels with excellent corrosion resistance, weather resistance and UV stability, making them suitable for both indoor and outdoor architectural applications. Additionally, their lightweight properties and ease of processing make them a popular choice for various decorative elements in modern architectural design. The Product Specification of Anodized aluminum sheet coil for architectural decoration Series Alloy Temper Thickness(mm) Width(mm) Length(mm) 1*** 1050,1060,1070,1100 O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38 0.2-7.0 30-2650 400-8000 3*** 3003,3004,3005 5*** 5005,5052,5083 5086,5182,5251   The Advantages of Anodized aluminum sheet coil for architectural decoration Anodized aluminum sheet coil has good plasticity, easy to form, good processability. Anodized aluminum sheet coil has excellent corrosion resistance, long-term discoloration, no corrosion, no oxidation, no rust. Anodized aluminum sheet coil has strong metal texture, excellent scratch and tensile properties. Anodized aluminum sheet coil has wide application, strong adaptability, no obvious flaws. The Applications of Anodized aluminum sheet coil for architectural decoration Building Facades: Anodized aluminum sheets are commonly...

Get A Quote

5052 aluminum sheet for bus body panels

With the requirements of energy saving and environmental protection, passenger cars have also started the road to lightweight. Many automobile manufacturers choose aluminum alloy materials as the lightweight materials for automobiles. The aluminum alloy used for bus body mainly includes skeleton profile and skin. The body adopts skeleton and skin structure. Generally, the skeleton can be made of 6061 aluminum alloy, and the skin material is mainly made of 5052 aluminum plate, 5083 aluminum plate or 3003 aluminum plate. The material of 5052 aluminum sheet is aluminum-magnesium alloy, which has the characteristics of high strength, good plasticity and high corrosion resistance. The aluminum sheet contains a small amount of chromium and manganese, which can improve the ability of the aluminum sheet to resist stress corrosion cracking, and is very suitable for use as a bus body panel. Specifications of 5052 aluminum sheet for bus body panels   Alloy 5052 aluminum plate Temper F,O,H12,H14,H16,H18,H19, 　　H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114 Thickness(mm) 1–600 Width(mm) 100-2650 Length(mm) 500-16000 Standard GB/T 3880, EN14286, EN485, ASTM B209, or according to customer’s special requirements.   Advantages of 5052 aluminum sheet for bus body panels   The self-weight of the body is greatly reduced to reduce energy consumption, reduce environmental pollution, and improve...

Get A Quote
